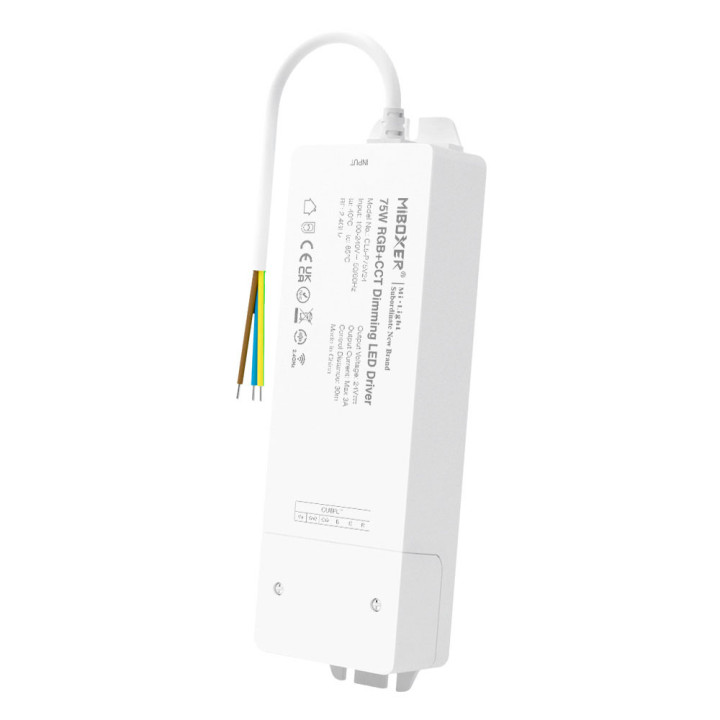

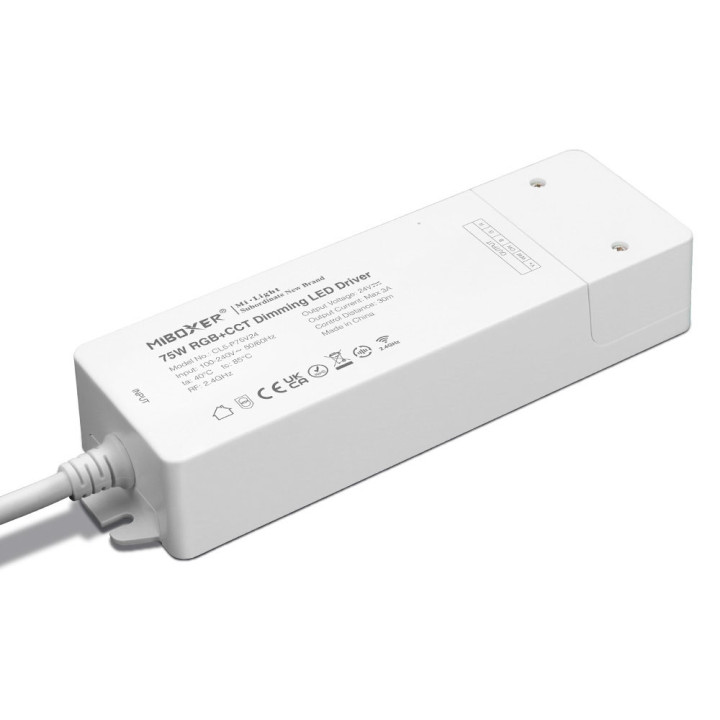

MiBoxer CL5-P75V24 RGB-CCT LED driver with integrated power supply
The MiBoxer CL5-P75V24 combines a 24 V power supply with wireless control for RGB-CCT LED strips. A compatible MiBoxer 2.4 GHz remote adjusts colours, colour temperature, brightness and saturation. The manufacturer specifies a nominal power rating of 75 W.
Features
- 16 million colours with adjustable warm-white and cool-white light.
- Dimmable brightness and adjustable colour saturation.
- 2.4 GHz wireless control with a range of up to 30 m.
- Automatic signal forwarding and dynamic-mode synchronisation between compatible devices under the conditions stated in the manual.
- App and voice control through an additional compatible 2.4 GHz gateway. No built-in WiFi.
- DMX512 control with a separate compatible MiBoxer DMX512 wireless transmitter; no direct DMX input.
Technical specifications
| Manufacturer | MiBoxer / Mi-Light |
| Model | CL5-P75V24 |
| Input | 100–240 V AC, 50/60 Hz |
| Output voltage | 24 V DC, constant voltage |
| Manufacturer-rated power | 75 W |
| Maximum output current | 3 A |
| LED output | RGB-CCT, 5 channels; V+, WW, CW, B, G, R |
| Wireless control | 2.4 GHz, up to 30 m |

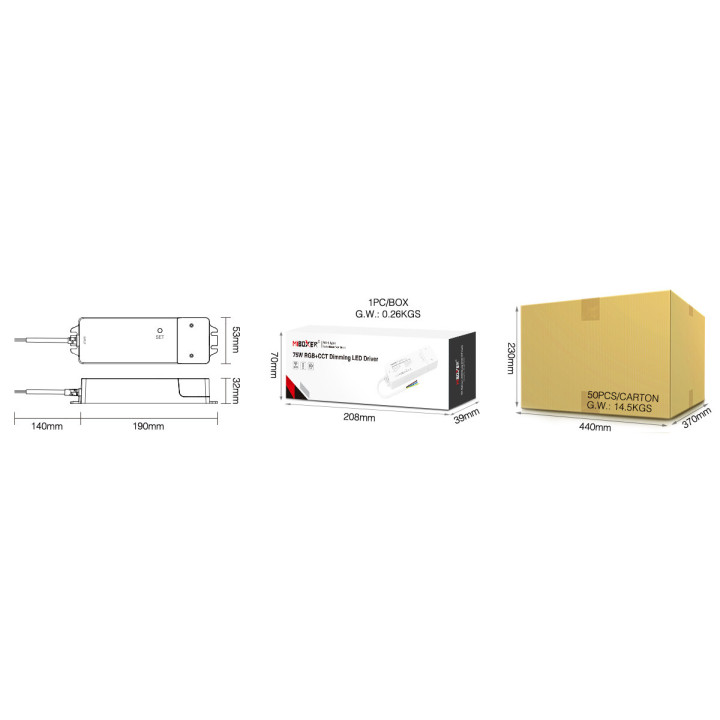

| Housing dimensions | 190 × 53 × 32 mm |
| Temperature ratings | ta: 40 °C; tc: maximum 85 °C |
Installation and included items

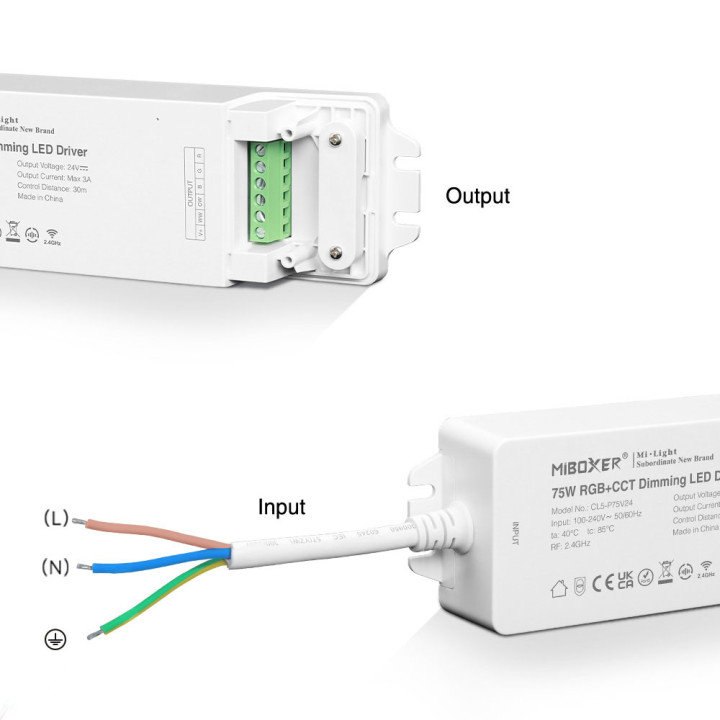

For dry indoor use only. Mains wiring must be carried out by a qualified electrician. Disconnect power before installation and wiring. Connect the protective earth and mains wires according to the manufacturer instructions. Use suitable 24 V RGB-CCT LED strips only, observe polarity and do not exceed the maximum output current of 3 A. Fully unroll LED strips before operation and install them according to their own instructions.
Included: 1 MiBoxer CL5-P75V24 LED driver with integrated power supply. LED strips, remote control, gateway and DMX wireless transmitter are not included.
