MiBoxer LS4 Connection diagram and system overview

MiBoxer 0/1-10 V dimming controller LS4

Name: MiBoxer 0/1-10 V dimming controller LS4
Brand: MiBoxer
SKU: LS4
Price: 24 CHF
Availability: InStock

MiBoxer

CHF24.00

No tax

Dimming driver for single-colour LED strips, 12-48 V DC, max. 12 A. Control via 0-10 V, 1-10 V, 10 V PWM, PUSH button or 2.4 GHz remote. App control requires a separate gateway.

MiBoxer LS4 LED Dimming Driver for 0/1-10 V and RF Control

The LS4 dims single-colour constant-voltage LED strips operating at 12 to 48 V DC. It accepts external 0-10 V, 1-10 V and 10 V PWM dimming signals or a PUSH button. A compatible MiBoxer 2.4 GHz RF remote provides an alternative way to control the lights.

Features

Switching and brightness adjustment through compatible dimming signals or RF control.
Pair up to 12 remotes with one controller; RF range up to 30 m.

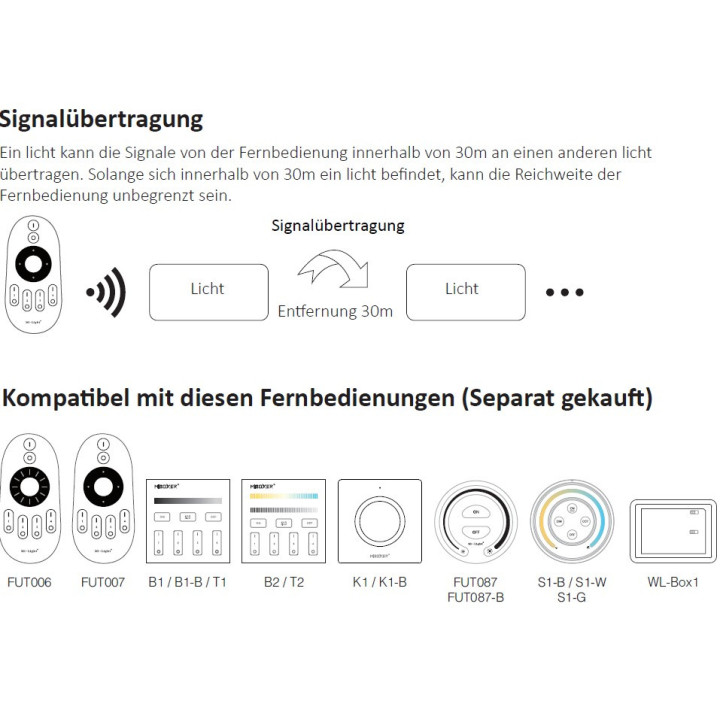

SET button for pairing and automatic signal forwarding to other compatible devices.
Do Not Disturb mode controls behaviour after power interruptions.
Tuya Smart and voice control, including Alexa and Google Assistant, with an additional compatible 2.4 GHz gateway.

Technical data

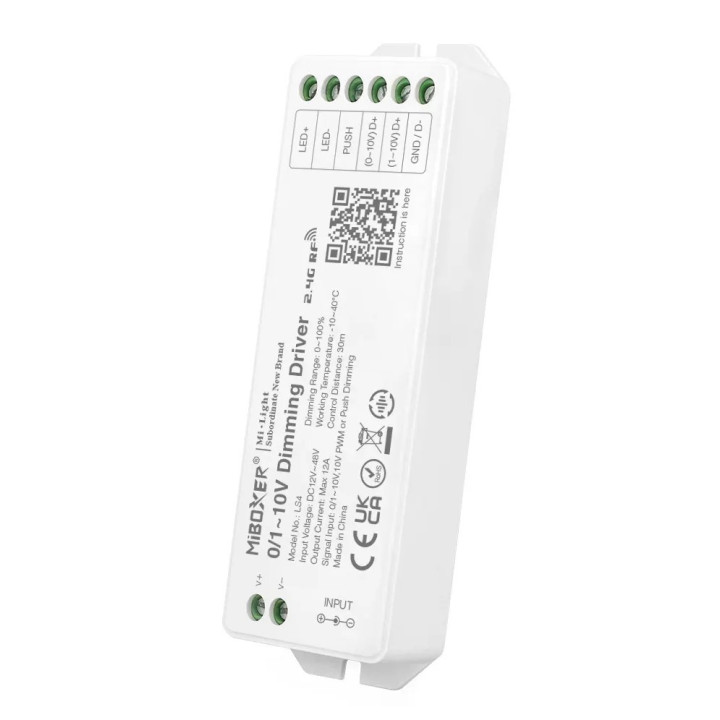

Manufacturer / model	MiBoxer / LS4
Input voltage	12-48 V DC
LED output	Constant voltage, single colour; max. 12 A
Maximum output power	144 W at 12 V / 288 W at 24 V / 576 W at 48 V
Dimming signal inputs	0-10 V, 1-10 V, 10 V PWM, PUSH dimming
Wireless control	2.4 GHz RF, up to 30 m
Dimensions	124 × 38 × 22 mm
IP rating	IP20
Operating temperature	-10 to +40 °C (current manufacturer specification)

Installation notice

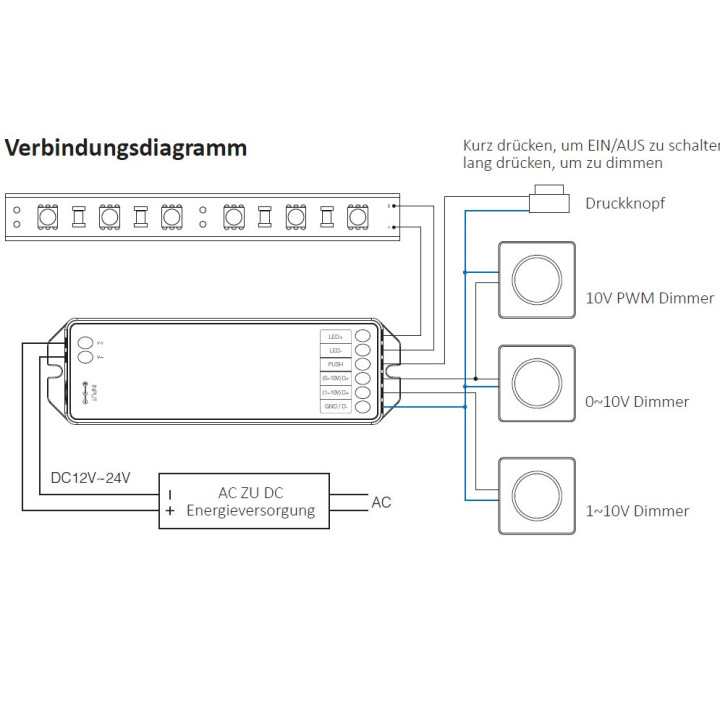

For dry indoor use only. Disconnect power before wiring. The power supply and LED strip must use matching operating voltages; observe the maximum output current of 12 A. The LS4 requires an external DC power supply and is not a 230 V mains power supply. Wire the dimming signal and PUSH button according to the connection diagram; never apply mains voltage to the signal terminals. Large metal surfaces and strong electromagnetic interference may reduce RF range.

Supplied: 1 LS4 controller. Power supply, LED strip, remote, dimming panel and gateway are not included. The gallery contains product photos, dimensions and the connection diagram.
