MiBoxer ZL5 5-in-1 LED controller – Zigbee 3.0 + 2.4 GHz

Name: MiBoxer ZL5 5-in-1 LED controller – Zigbee 3.0 + 2.4 GHz
Brand: MiBoxer
SKU: ZL5
Price: 28 CHF
Availability: InStock

MiBoxer

CHF28.00

No tax

5-in-1 controller for analogue LED strips: single colour, CCT, RGB, RGBW or RGB+CCT. 12–48 V DC, up to 6 A per channel and 15 A total. Control via a compatible MiBoxer/Mi-Light 2.4 GHz remote or Zigbee 3.0 gateway.

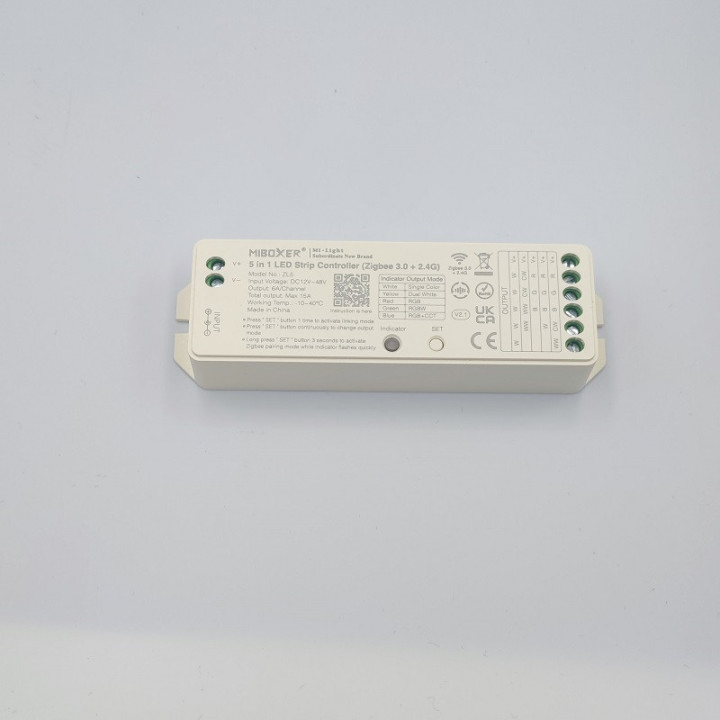

MiBoxer ZL5 – five LED modes in one controller

The ZL5 controls analogue constant-voltage LED strips. Use the mode button to select single colour, dual white/CCT, RGB, RGBW or RGB+CCT. Brightness, colours and colour temperature can be adjusted according to the connected LED strip and selected mode.

Technical specifications

Supply voltage	12–48 V DC
Output current	Up to 6 A per channel; up to 15 A total
Output	Five channels, PWM constant-voltage control
Control	Zigbee 3.0 and 2.4 GHz RF
Wireless range	2.4 GHz RF: up to 30 m; Zigbee: up to 100 m in open areas
Operating temperature	−10 to +40 °C
Dimensions	124 × 38 × 23 mm

Remote, app and voice control

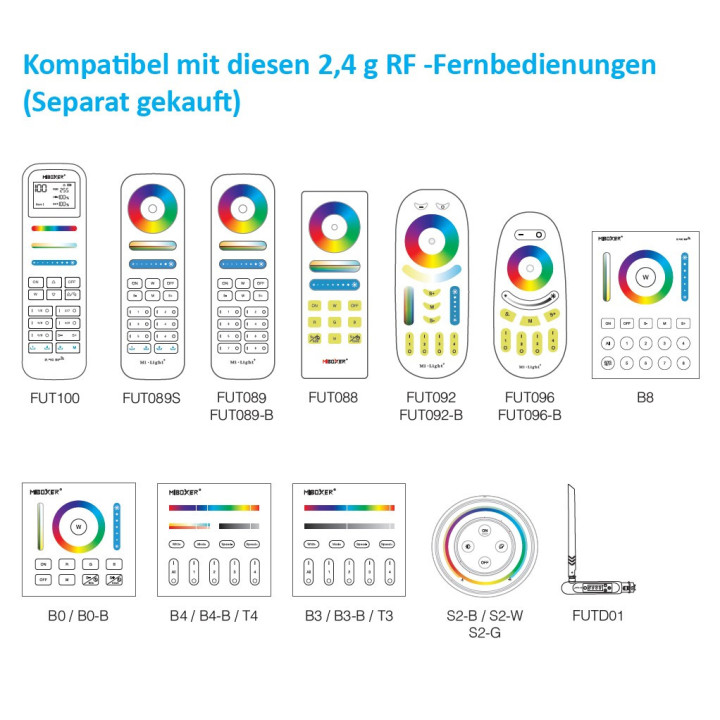

Direct RF control requires a MiBoxer/Mi-Light 2.4 GHz remote compatible with the ZL5. App and voice control require a compatible Zigbee 3.0 gateway. Available features and voice services depend on the gateway and its app. The ZL5 has no built-in Wi-Fi.

The manufacturer describes signal forwarding and synchronisation with compatible devices. Range figures apply under suitable conditions; walls and the wireless environment may reduce the range.

Connection and package contents

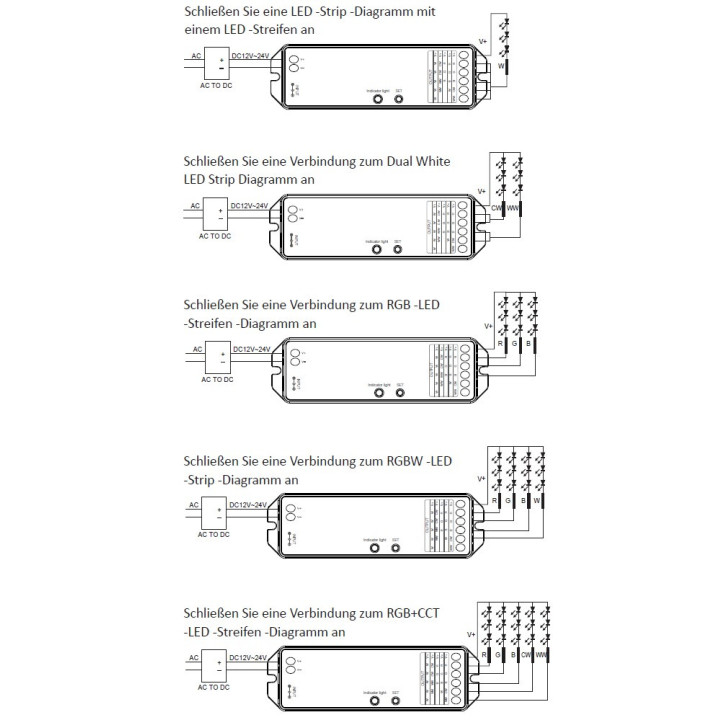

The power supply and LED strip must use the same operating voltage. Observe both the per-channel and total current limits. This analogue controller is not intended for digital SPI pixel strips.

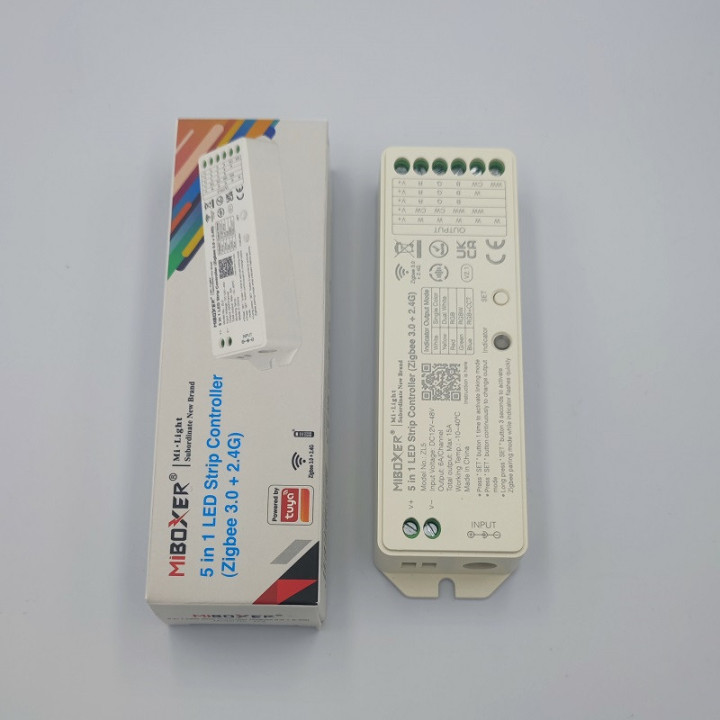

Package contents according to the existing listing: 1 ZL5 receiver with English instructions. Power supply, remote control and Zigbee gateway are not included.
