MiBoxer 2-in-1 controller PZ2 images

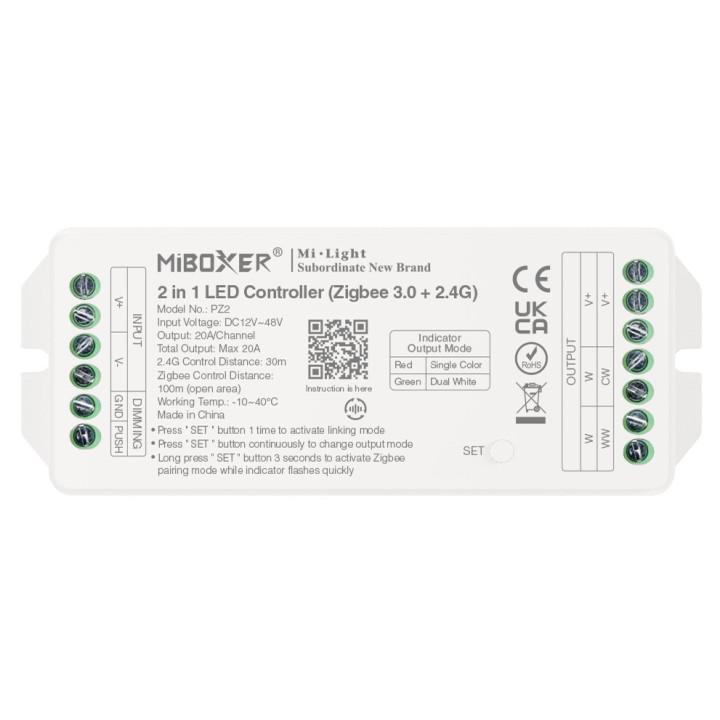

MiBoxer 2-in-1 controller PZ2
MiBoxer PZ2 for single-colour and CCT LED strips. 12–48 V DC, up to 20 A per channel and 20 A total. Zigbee 3.0, compatible 2.4 GHz remote control and PUSH dimming.
-
Product name 2-in-1 LED controller (Zigbee 3.0 +2.4 GHz)
Model PZ2
Input voltage DC12~48 V
Output current per channel 20 A per channel
Total output current Maximum 20 A
Communication protocol Zigbee 3.0 + 2.4 GHz
Control range Zigbee: 100 m (open area)
2.4 GHz RF: 30 mIP rating –
Operating temperature -10~40°C
Wireless technology Zigbee 802.15.4
Wireless frequency 2.400–2.480 GHz

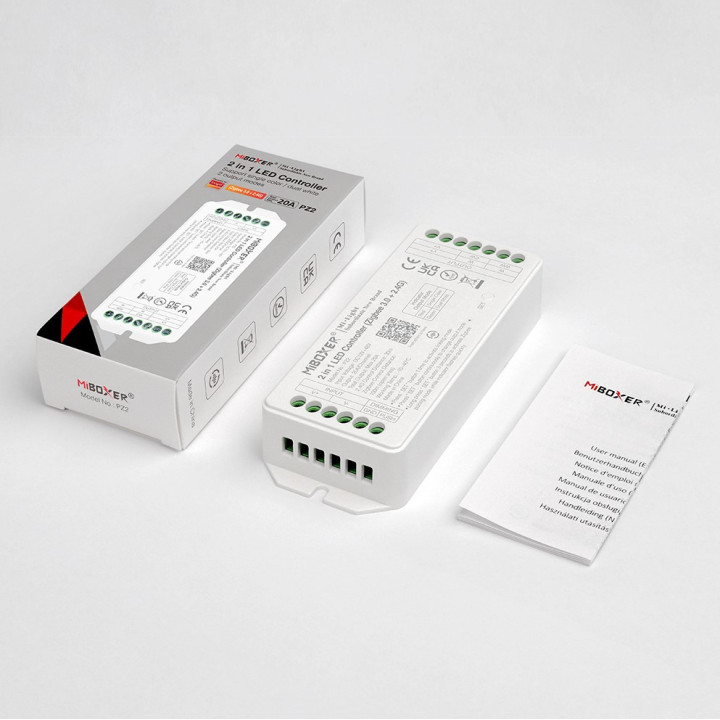

Package contents:
1 receiver
USER MANUAL
Notes:
This product is the receiver only.
Current limits and control
Observe a maximum of 20 A per channel and 20 A total. Do not simply add the channel ratings together. The power supply and LED strip must use matching operating voltages.

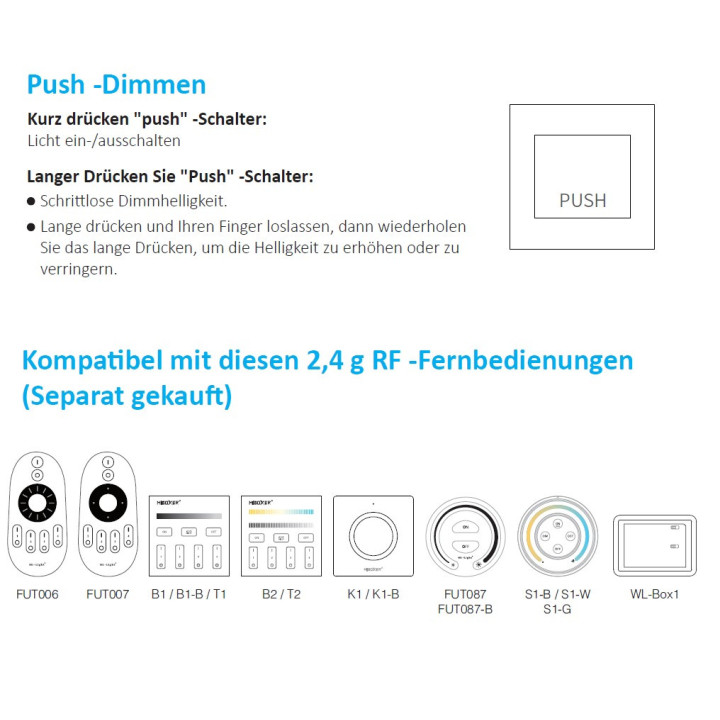

App and voice control require a compatible Zigbee 3.0 gateway; available features depend on the gateway and its app. No built-in Wi-Fi. For direct RF control, use a MiBoxer/Mi-Light remote explicitly compatible with the PZ2 and selected LED mode.
-
