MiBoxer ML5 Wiring diagrams single colour CCT RGB RGBW RGB+CCT

MiBoxer ML5 5-in-1 LED Controller Matter over WiFi 2.4 GHz 12-48 V

Name: MiBoxer ML5 5-in-1 LED Controller Matter over WiFi 2.4 GHz 12-48 V
Brand: MiBoxer
SKU: ML5
Price: 23 CHF
Availability: InStock

CHF23.00

No tax

5-in-1 controller for single-colour, CCT, RGB, RGBW and RGB+CCT LED strips. Matter over WiFi and 2.4 GHz RF, 12-48 V DC, max. 6 A per channel and 15 A total. Observe PWM-dependent channel limits.

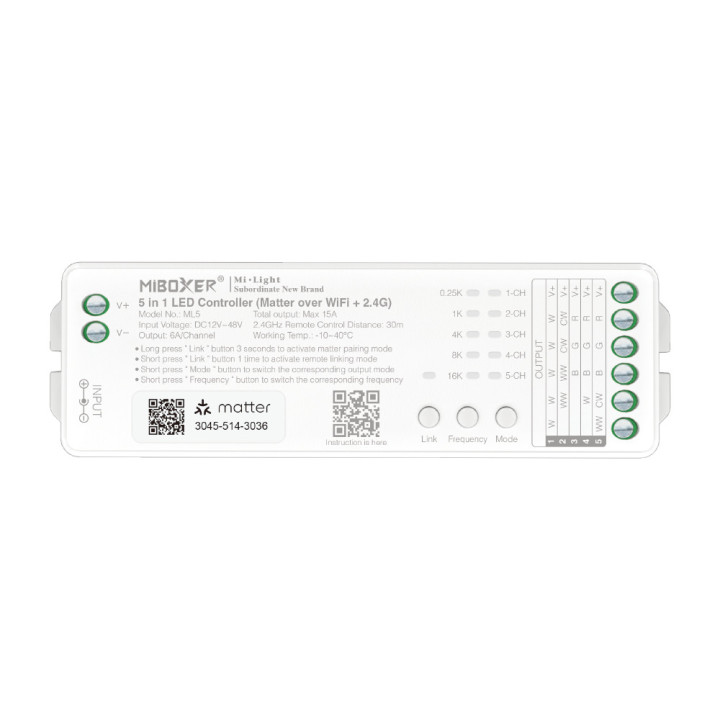

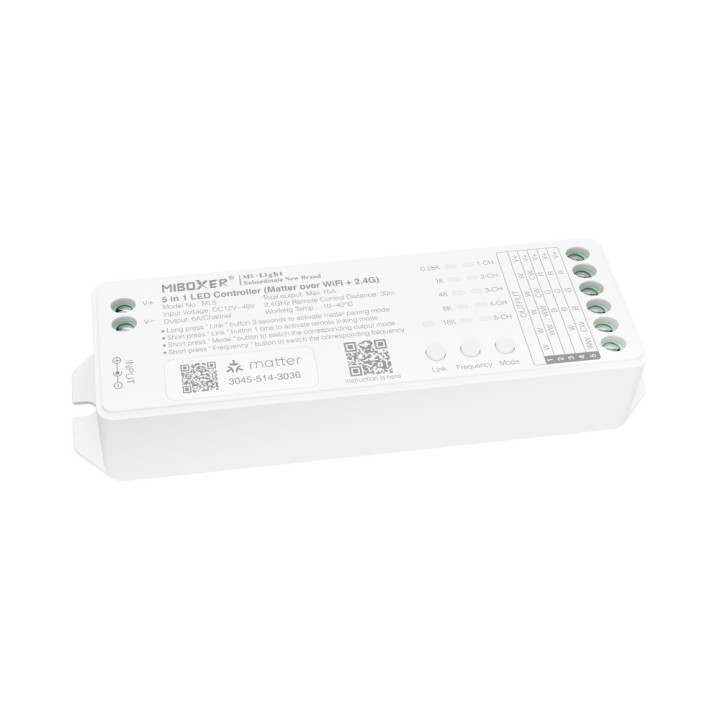

MiBoxer ML5 5-in-1 LED Controller with Matter over WiFi

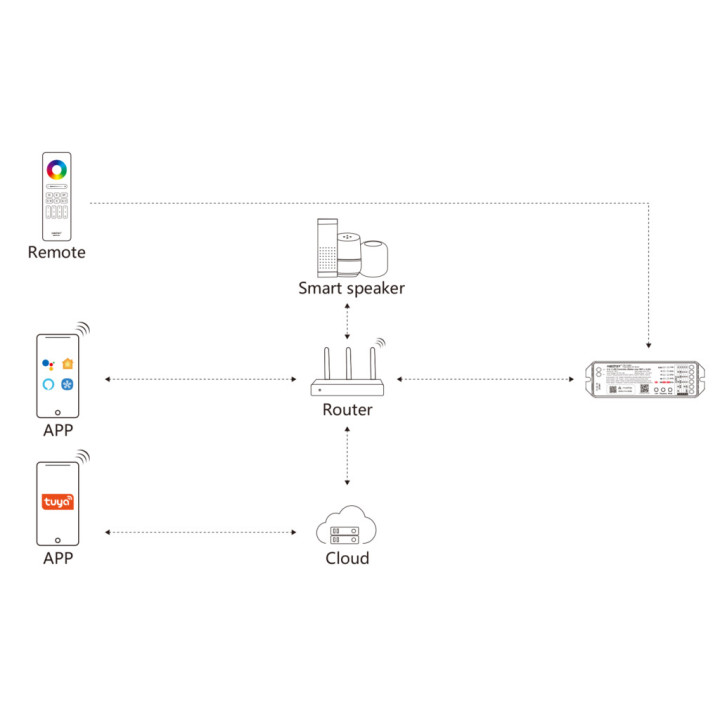

The ML5 controls constant-voltage LED strips in five selectable modes: single colour, dual white (CCT), RGB, RGBW and RGB+CCT. Control it through Matter/WiFi or compatible MiBoxer 2.4 GHz RF remotes.

Features

QR-code setup with compatible Matter platforms such as Apple Home, Google Home, Amazon Alexa and SmartThings; Tuya Smart is also supported.
No additional MiBoxer 2.4 GHz gateway is needed for WiFi app control. A compatible Matter controller may be required by your chosen platform.
Pair up to 12 RF remotes; wireless range up to 30 m.
18 dynamic modes operated by remote, automatic signal forwarding and synchronisation between compatible controllers.
Do Not Disturb mode and selectable PWM frequency.

Technical data

Manufacturer / model	MiBoxer / ML5
Input voltage	12-48 V DC
Output	Constant voltage; single colour / CCT / RGB / RGBW / RGB+CCT
Maximum output current	6 A per channel, max. 15 A total
PWM frequency / channel limit	0.25 / 1 / 4 kHz: max. 6 A; 8 kHz: max. 5 A; 16 kHz: max. 4 A
Protocols	Matter over WiFi and 2.4 GHz RF
WiFi	IEEE 802.11 b/g/n, 2.4 GHz (not 5 GHz WiFi)
RF range	Up to 30 m

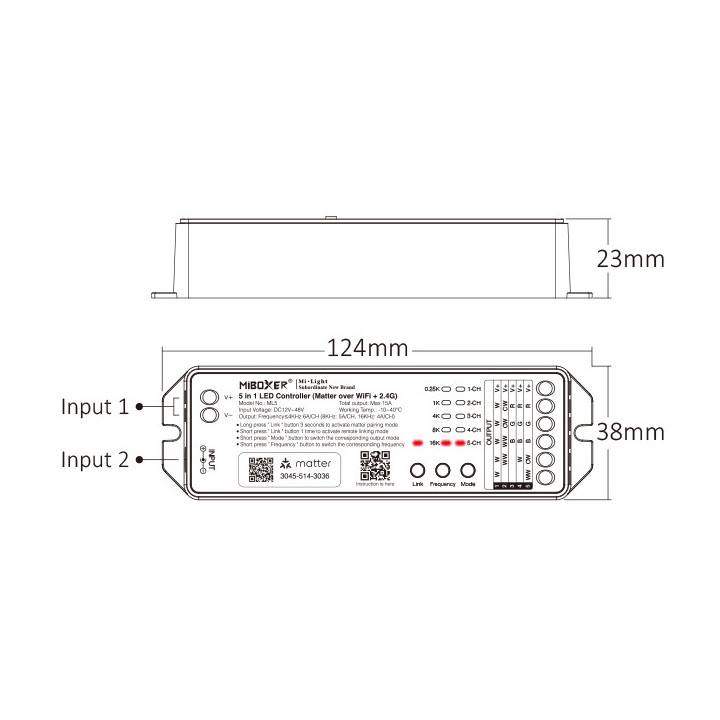

Dimensions	124 × 38 × 23 mm
IP rating	IP20
Operating temperature	-10 to +40 °C

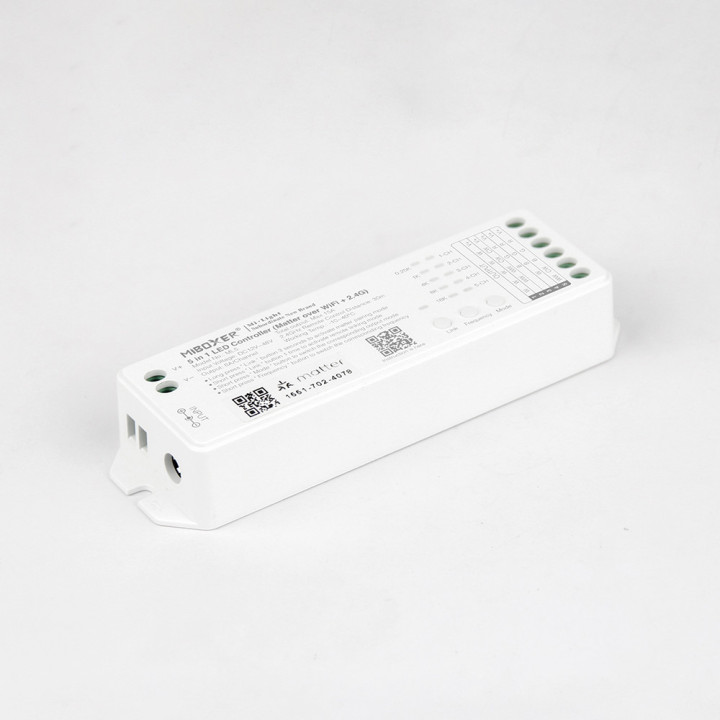

Installation notice

For dry indoor use only. Disconnect power before wiring. Use matching operating voltages for the power supply, controller and LED strip. Select the mode for the connected strip and follow the corresponding wiring diagram. Observe per-channel limits, PWM-dependent current limits and the maximum total current of 15 A. Do not connect directly to 230 V mains. Large metal surfaces and strong electromagnetic interference can reduce wireless range.

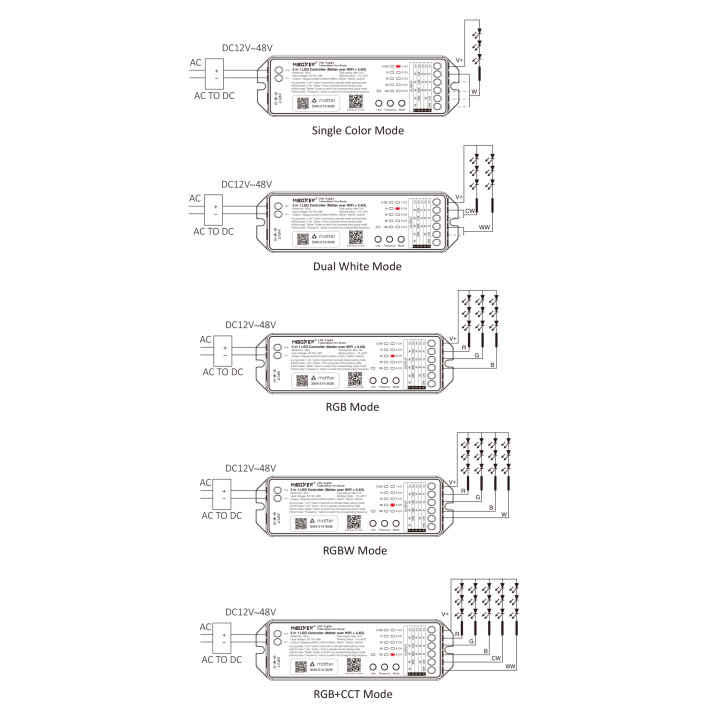

Power supply, LED strip and remote are sold separately. Product photos, dimensions and wiring diagrams are available in the image gallery. Official German and English manuals are provided in the downloads below.
