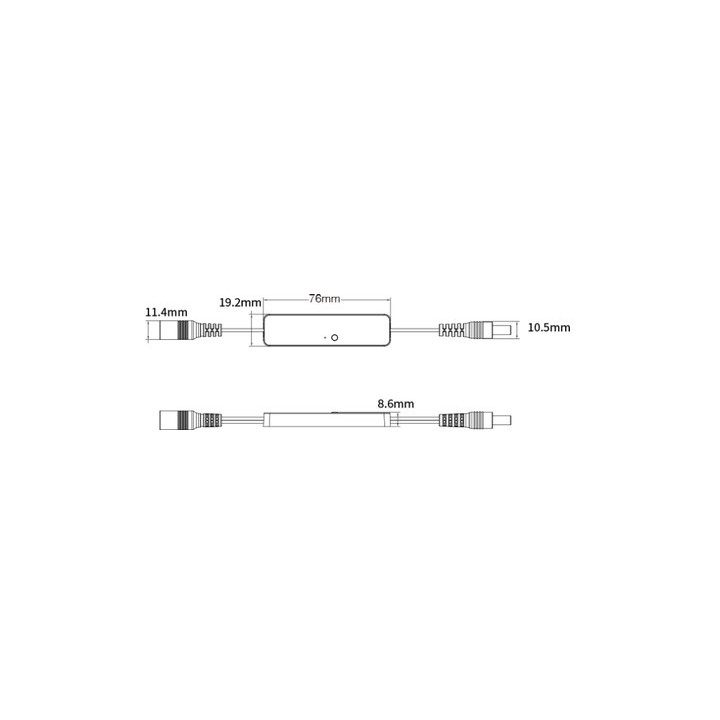

MiBoxer MLR1 dimension drawing with DC connectors

MiBoxer MLR1 Mini Single Colour LED Controller 12-24 V 6 A 2.4 GHz

Name: MiBoxer MLR1 Mini Single Colour LED Controller 12-24 V 6 A 2.4 GHz
Brand: MiBoxer
SKU: MLR1
Price: 11 CHF
Availability: InStock

CHF11.00

No tax

Compact RF dimmer for single-colour 12/24 V LED strips. Max. 6 A, 72 W at 12 V / 144 W at 24 V, DC5521 connectors, 2.4 GHz RF. Remote and power supply sold separately.

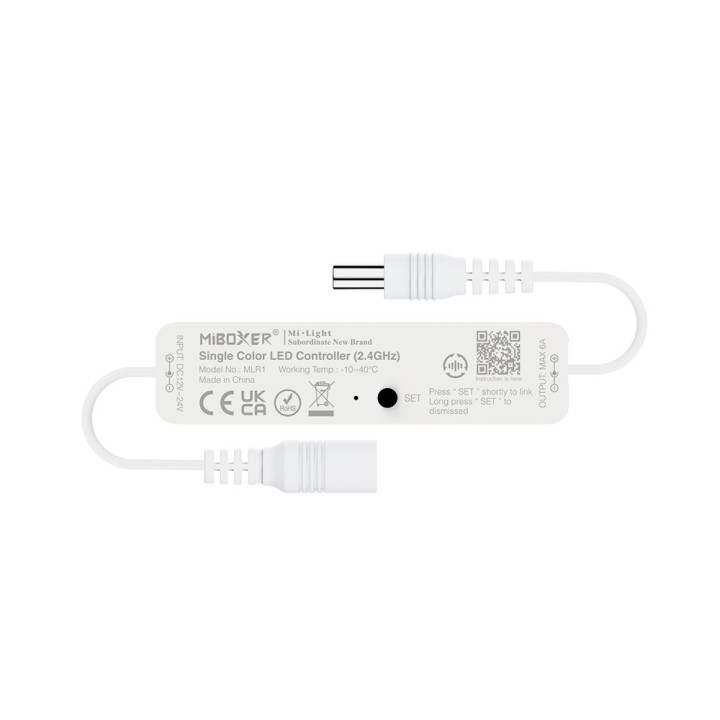

MiBoxer MLR1 Mini Single Colour LED Controller

The compact MLR1 switches and dims single-colour constant-voltage LED strips operating at 12 or 24 V DC. DC plug and socket connections simplify installation. A compatible MiBoxer remote controls it using 2.4 GHz RF.

Features

Smooth brightness adjustment from 0.1 to 100% with 4096 dimming levels and a logarithmic curve.
Pair up to 12 remotes with one controller; control range up to 30 m.
Automatic signal forwarding to other compatible controllers within 30 m.
Do Not Disturb mode retains the on/off state after a power interruption.
Tuya Smart, Alexa, Google Assistant and Yandex Alice support with an additional 2.4 GHz gateway.

Technical data

Manufacturer / model	MiBoxer / MLR1
Input voltage	12-24 V DC
Output	Constant voltage, single colour, max. 6 A
Maximum output power	72 W at 12 V / 144 W at 24 V
Connections	DC5521 (5.5 × 2.1 mm), socket input / plug output
Wireless control	2.4 GHz RF, up to 30 m
Dimming	0.1-100%, 4096 levels, logarithmic
Housing dimensions	76 × 19 × 8.8 mm
IP rating	IP20
Operating temperature	-10 to +40 °C

Installation notice

For dry indoor use only. Disconnect power before wiring. The power supply and LED strip must have matching operating voltages; observe the maximum output current and power. Do not connect directly to 230 V mains. Large metal surfaces and strong electromagnetic interference may reduce wireless range.

Remote, power supply and gateway are required separately and are not included with this item. Official German and English manuals are available under Downloads.
