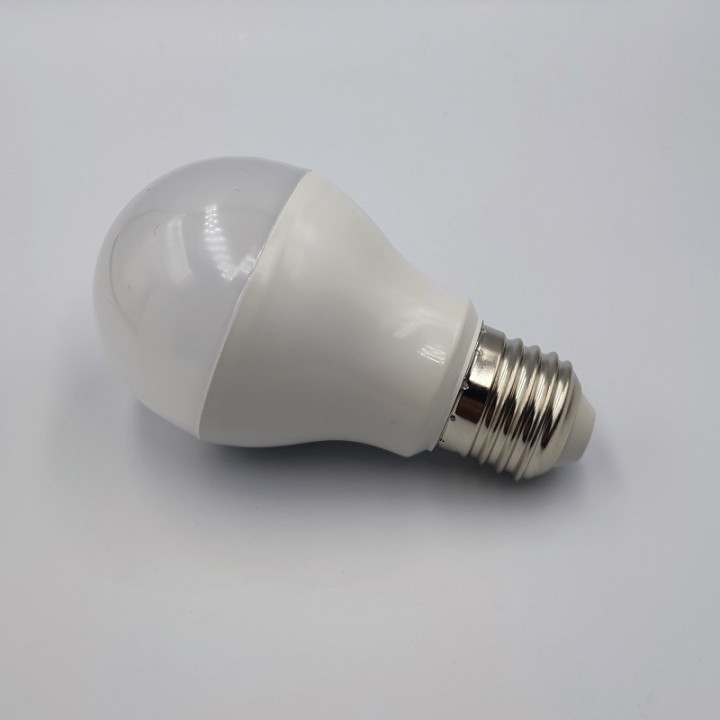

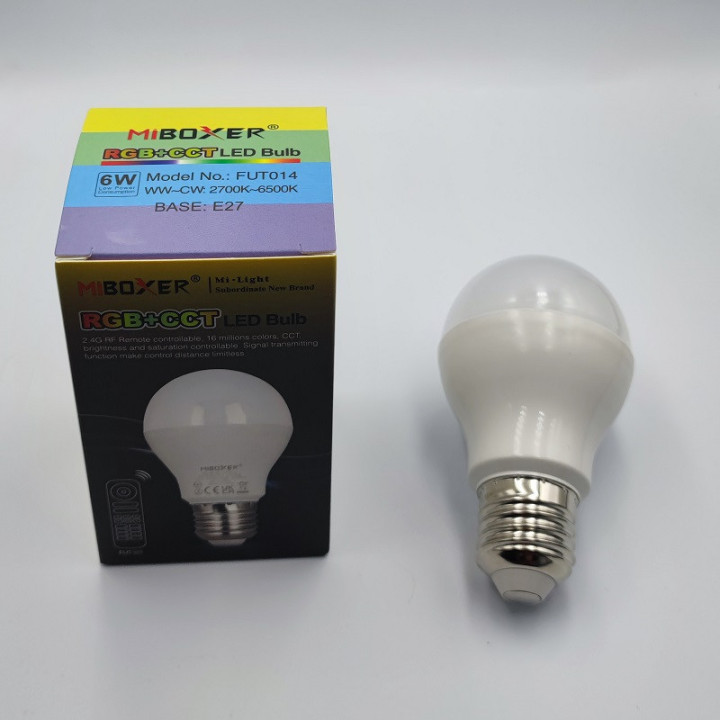

MiBoxer FUT014 LED bulb E27 6 W RGB+CCT

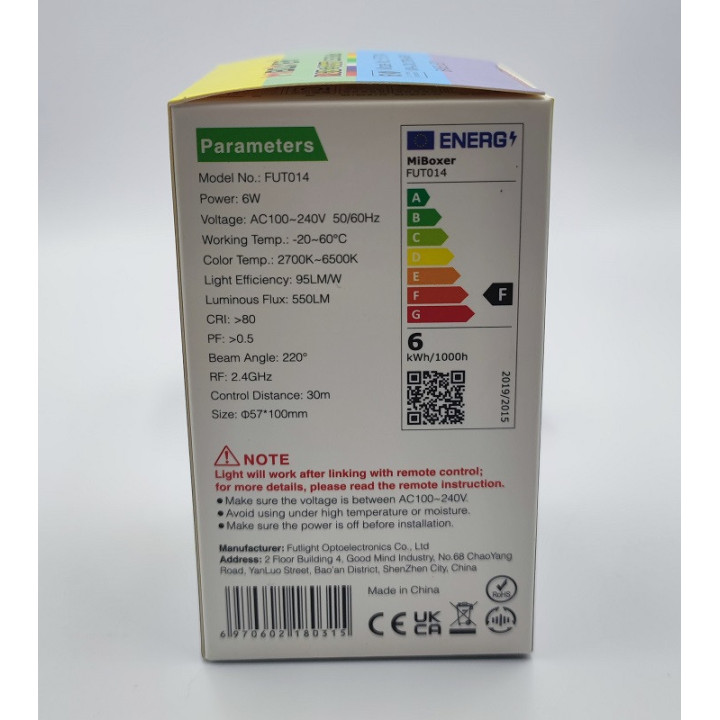

Technical specifications

• Model: FUT014
• Base: E27
• Power: 6 W
• Luminous flux: 550 lm
• Operating voltage: 100–240 V AC, 50/60 Hz
• Light colours: RGB+CCT (RGB and adjustable white light)
• Colour temperature: 2700–6500 K
• Colour rendering: CRI >80
• Beam angle: 220°
• Dimensions: Ø 57 × 100 mm
• RF frequency: 2.4 GHz
• RF range: up to 30 m, depending on environmental conditions

Control

Brightness, RGB colour and white light colour temperature are adjusted using a compatible Mi-Light/MiBoxer remote control. Dimming is controlled via RF.

Compatible remote controls

The following models are listed in the manufacturer documentation:

• Handheld remote controls: FUT088, FUT089/FUT089-B, FUT092/FUT092-B, FUT096/FUT096-B
• Wall-mounted remote controls: B0, B3/B3-B/T3, B4/B4-B/T4, B8, S2-B/S2-W/S2-G

Available functions depend on the remote control model. RGBW remote controls do not provide the full RGB+CCT functionality.

App control

App control requires an additional 2.4 GHz gateway compatible with this model. The bulb does not have built-in Wi-Fi. Remote control and gateway are sold separately.

Installation notes

Switch off the power supply to the luminaire before fitting or replacing the bulb. For dry indoor locations. Check the bulb dimensions and the space available in the luminaire before installation.
