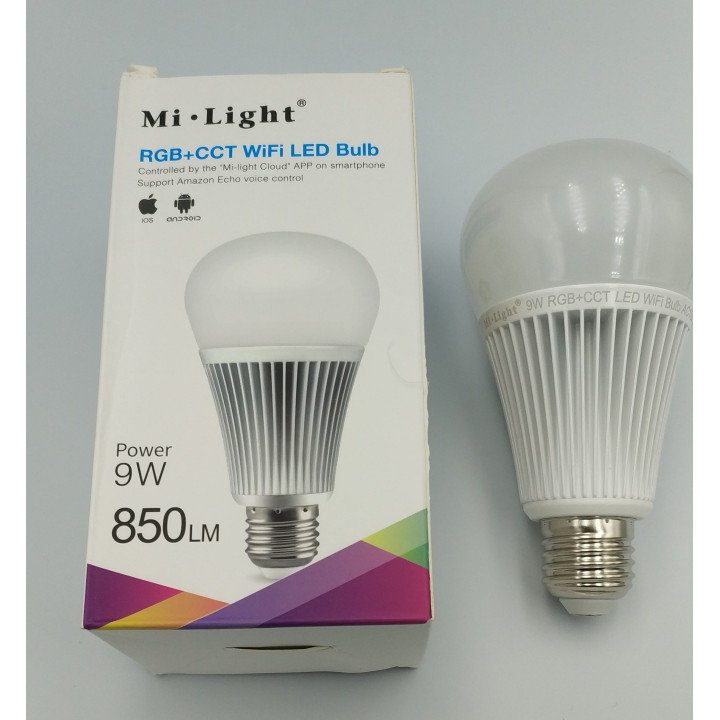

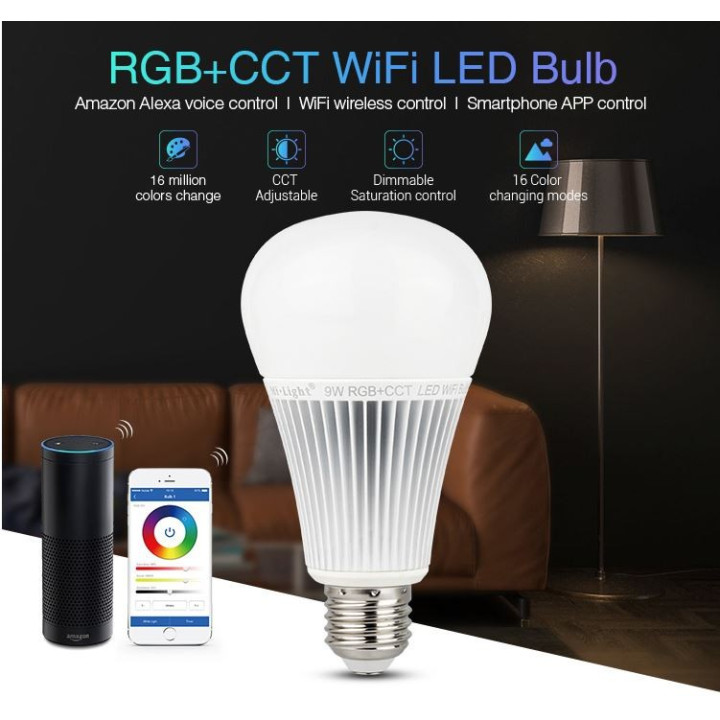

Mi-Light YB1 LED bulb E27 9 W RGB+CCT Wi-Fi

Technical specifications

• Model: YB1
• Base: E27
• Power: 9 W
• Luminous flux: 850 lm
• Operating voltage: 100–240 V AC, 50/60 Hz
• Light colours: RGB+CCT (RGB and adjustable white light)
• Colour temperature: 2700–6500 K
• Colour rendering: CRI >80
• Beam angle: 220°
• Dimensions: Ø 74 × 137 mm
• Wi-Fi: 2.4 GHz, IEEE 802.11b/g/n

Control

Brightness, RGB colour and white light colour temperature are adjusted via Wi-Fi. The YB1 connects directly to a 2.4 GHz Wi-Fi network; no separate Mi-Light gateway is required.

Operation requires the Mi-Light Cloud app intended for the YB1. App and voice control depend on the availability and support of the associated cloud services. Current app compatibility should be checked before use.

Compatible remote controls

Mi-Light/MiBoxer 2.4 GHz RF remote controls are not supported. The YB1 is a Wi-Fi model, not an RF-controlled bulb from the FUT series.

Installation notes

Switch off the power supply to the luminaire before fitting or replacing the bulb. For dry indoor locations. Check the bulb dimensions and the space available in the luminaire before installation.
