GD-003 LED aluminium shelf profile, 1.5 m, 45°, silver

CHF33.00

No tax

1.5 m silver aluminium shelf and cabinet profile with a 45° LED channel. Cross-section 21 × 12 mm. Includes milky PC cover and 2 end caps. No LEDs included. Bulky-goods shipping CHF 31 or free collection in Zug. For LED strips up to 8 mm wide.

GD-003 – 45° shelf profile for LED strips

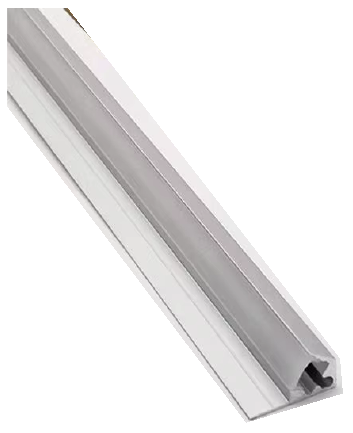

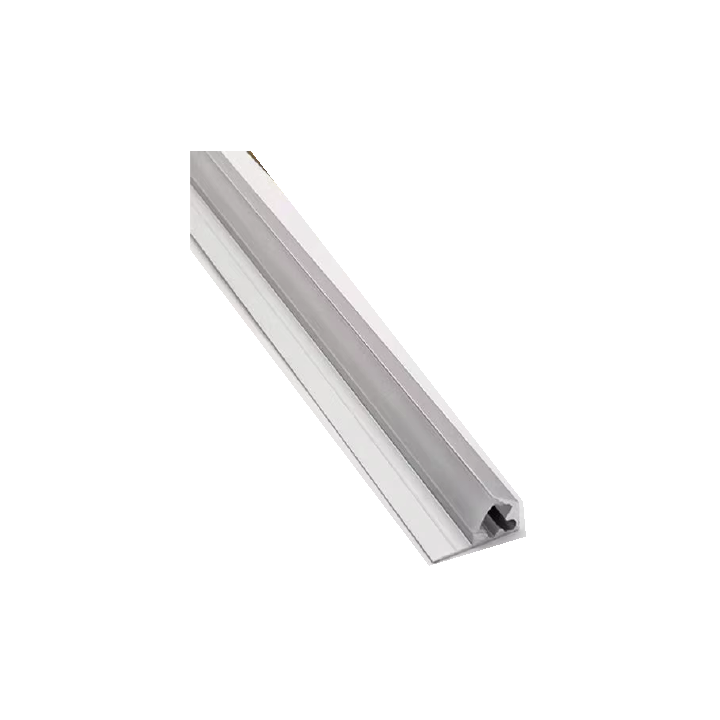

Silver aluminium profile for lighting shelves, cabinets and furniture. The angled LED channel is suitable for installation along shelves and underneath cabinet surfaces. The milky PC cover diffuses the light from a separately purchased LED strip. The supplied version is 1.5 m long and contains no LEDs.

Technical details

Model	GD-003
Length	1500 mm

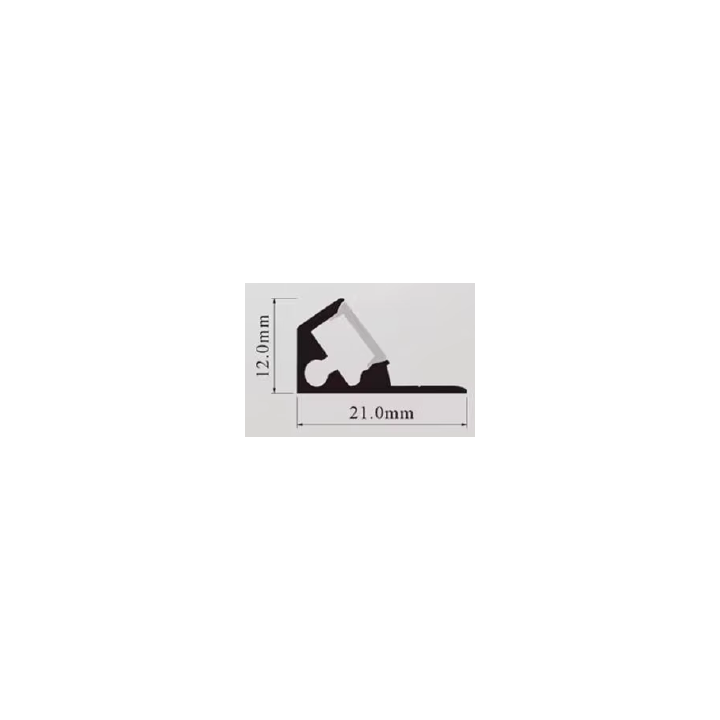

Cross-section width	21 mm
Cross-section height	12 mm
LED channel orientation	Angled, 45°
Maximum LED strip width	8 mm
Profile material	Aluminium
Profile colour	Silver
Cover	Milky PC diffuser, 1.5 m
Mounting	Surface mounting using screws or adhesive

Installation and LED selection

The profile can be screwed directly into place or bonded using mounting adhesive or double-sided mounting tape suitable for aluminium and the mounting surface. Bonding surfaces must be clean, dry, grease-free and sound. Follow the adhesive manufacturer’s application instructions and curing times.

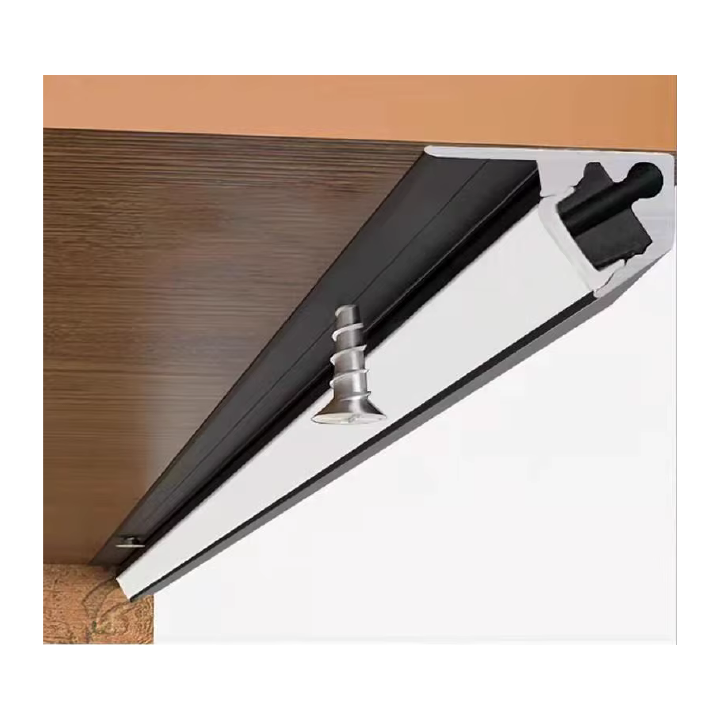

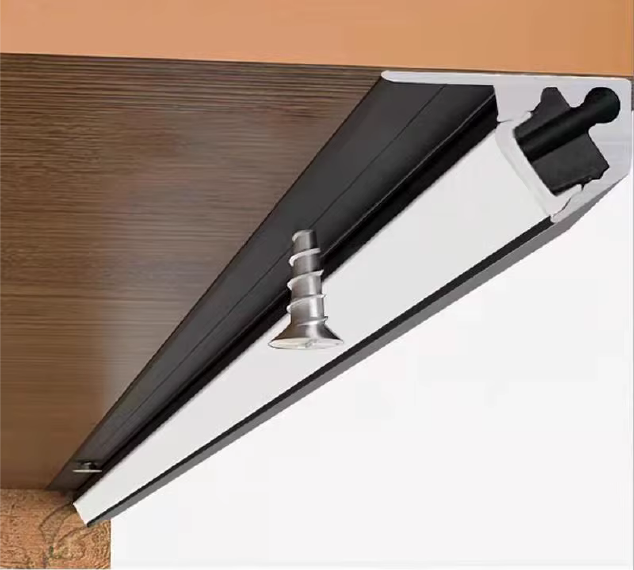

Suitable for LED strips up to a maximum total width of 8 mm. Also check strip height and allow sufficient space for coatings and connectors before installation. The 45° specification refers to the LED channel orientation; the actual light distribution depends on the LED strip and cover. The mounting illustration shows a black version for reference; the supplied profile is silver.

Included per profile

1 GD-003 aluminium shelf profile, 1.5 m, silver
1 milky PC cover, 1.5 m
2 end caps

LED strips and power supply are not included.

Shipping or collection

Bulky-goods shipping within Switzerland: CHF 31 per order, including orders of CHF 300 or more. Alternatively, collect free of charge in Zug by appointment, with no shipping or bulky-goods charges.
