EWI-AL062 LED aluminium wall profile, 2 m, single-sided, silver

CHF34.00

No tax

2 m aluminium wall profile for single-sided indirect lighting. Internal LED strip width: 12.2 mm. Includes a milky cover and mounting profile, each 2 m long, plus 2 end caps. Bulky-goods shipping CHF 31 or free collection in Zug.

EWI-AL062 – single-sided LED wall profile

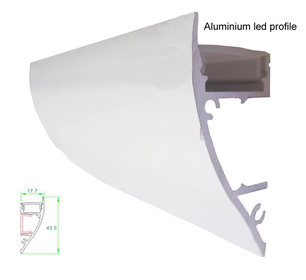

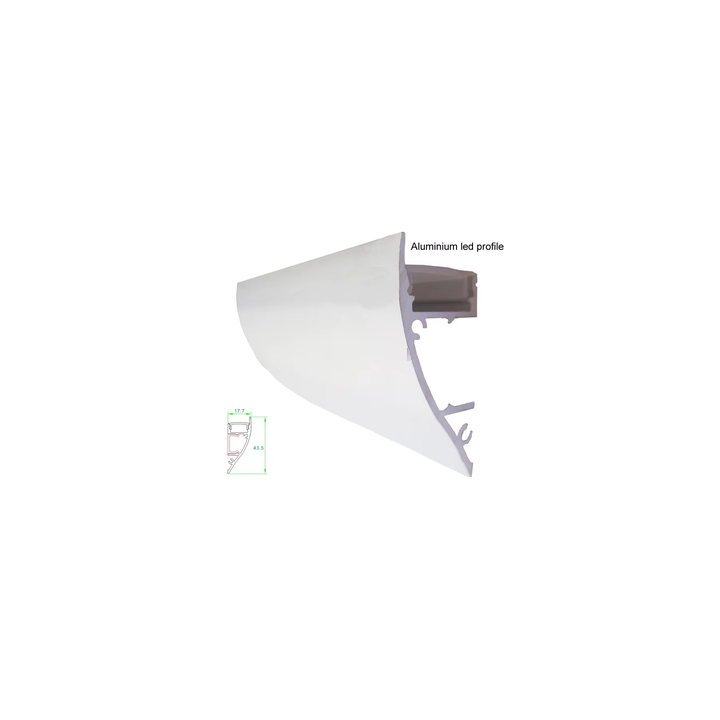

Silver aluminium wall profile with a curved front surface for indirect lighting. In the illustrated mounting orientation, light is emitted upwards from one side. The milky cover diffuses the light from a separately purchased LED strip. Sold as one complete 2 m profile.

Technical details

Model	EWI-AL062
Length	2000 mm
Overall height	43.5 mm

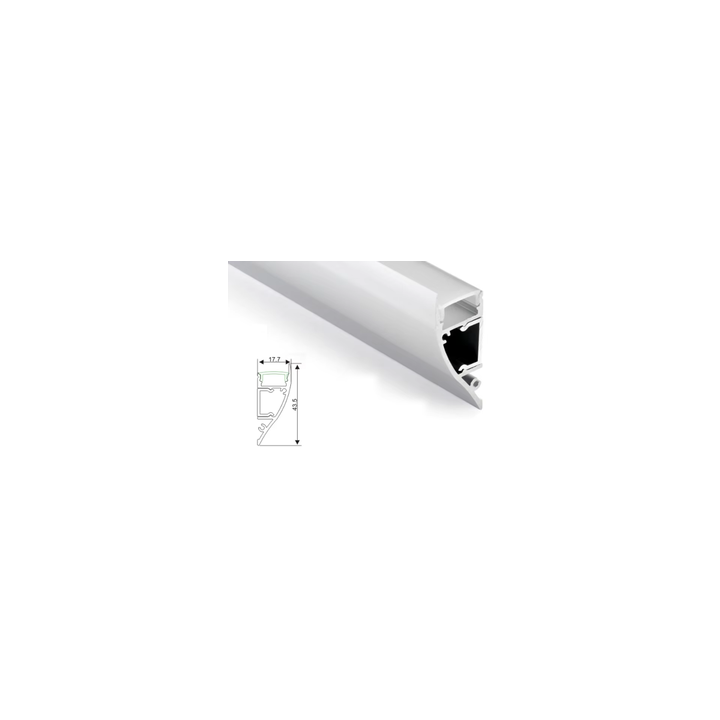

Profile depth in cross-section	17.7 mm
Internal LED strip width	12.2 mm
LED channels	1
Light emission	Single-sided
Profile material	Aluminium
Finish	Silver, anodised
Cover	Milky / diffused, 2 m

Compatible LED strips

For LED strips up to 12 mm in total width. The usable internal width of the LED channel is 12.2 mm. Allow for any additional space required by coatings or connectors. LED strips and power supply are not included.

Included per 2 m profile

1 EWI-AL062 aluminium wall profile, 2 m
1 milky cover, 2 m
1 mounting profile, 2 m

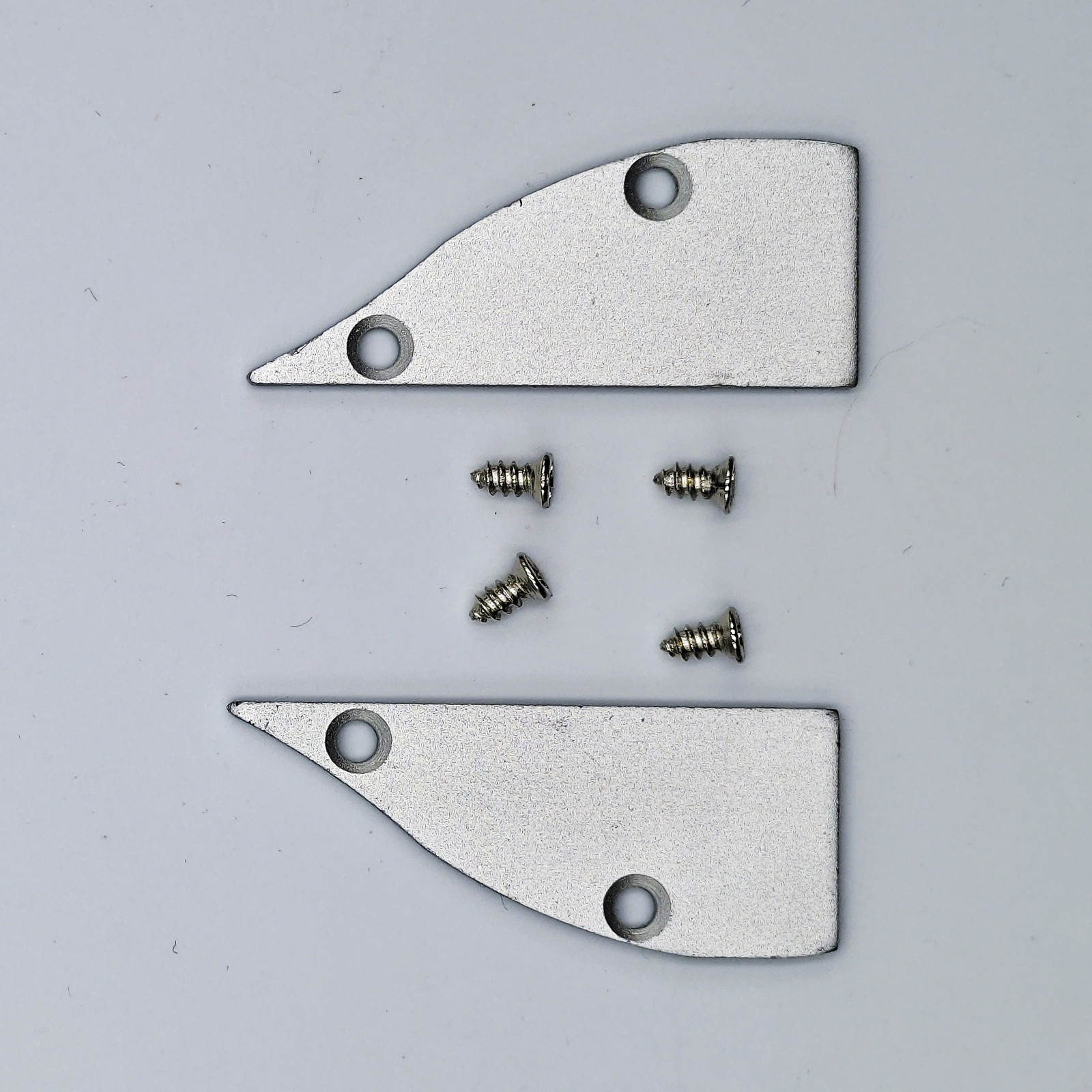

2 end caps

Shipping or collection

Bulky-goods shipping within Switzerland: CHF 31 per order, including orders of CHF 300 or more. Alternatively, collect free of charge in Zug by appointment, with no shipping or bulky-goods charges.
