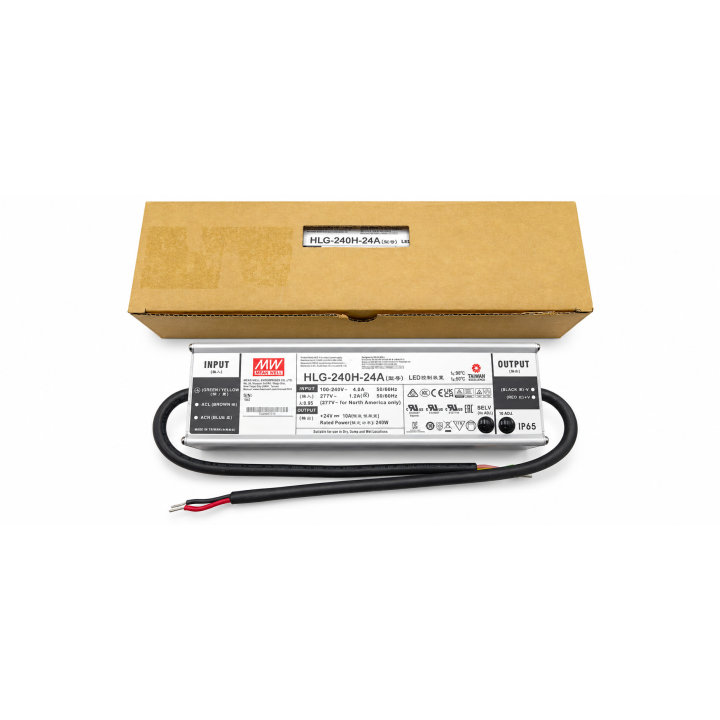

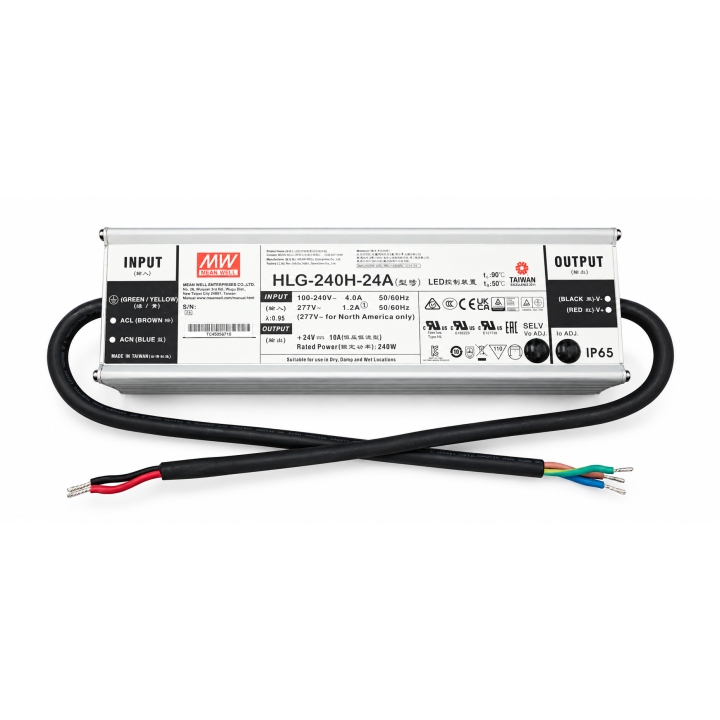

Mean Well HLG-240H-24A 24 V 10 A 240 W LED power supply
Mean Well HLG-240H-24A LED power supply with 24 V DC, 10 A and 240 W. Adjustable constant-voltage and constant-current operation for powerful LED lighting.
Mean Well HLG-240H-24A – 24 V LED power supply with 240 W
The Mean Well HLG-240H-24A is a robust AC/DC LED driver with constant-voltage and constant-current operation. It delivers 24 V DC at up to 10 A or 240 W and is suitable for LED luminaires, LED modules and professional lighting systems. The A-type version allows the output voltage and output current to be adjusted using built-in potentiometers. The passive aluminium housing operates without a fan and is designed for demanding indoor and outdoor applications.
Technical specifications
| Property | Specification |
|---|---|
| Model | HLG-240H-24A |
| Manufacturer | Mean Well |
| Output voltage | 24 V DC |
| Rated power | 240 W |
| Rated current | 10 A |
| Constant-current voltage range | 12–24 V |
| Adjustable output voltage | 22.4–25.6 V |
| Adjustable output current | 5–10 A |
| Input voltage | 90–305 V AC / 127–431 V DC |
| Frequency range | 47–63 Hz |
| Efficiency (typ.) | 92.5% at 230 V AC |
| Power factor | ≥ 0.98 at 115 V / ≥ 0.95 at 230 V AC |
| Ripple / noise | 150 mVp-p max. |
| IP rating | IP65 (A-type) |
| Operating temperature | −40 to +90 °C case temperature |
| Protection functions | Short circuit, overcurrent, overvoltage and overtemperature |
| Approvals | CE, UKCA, EAC, RoHS, SELV, UL8750 |
Note: Connection work on 230 V must only be carried out by qualified personnel. Please refer to the relevant Mean Well datasheet.
-
