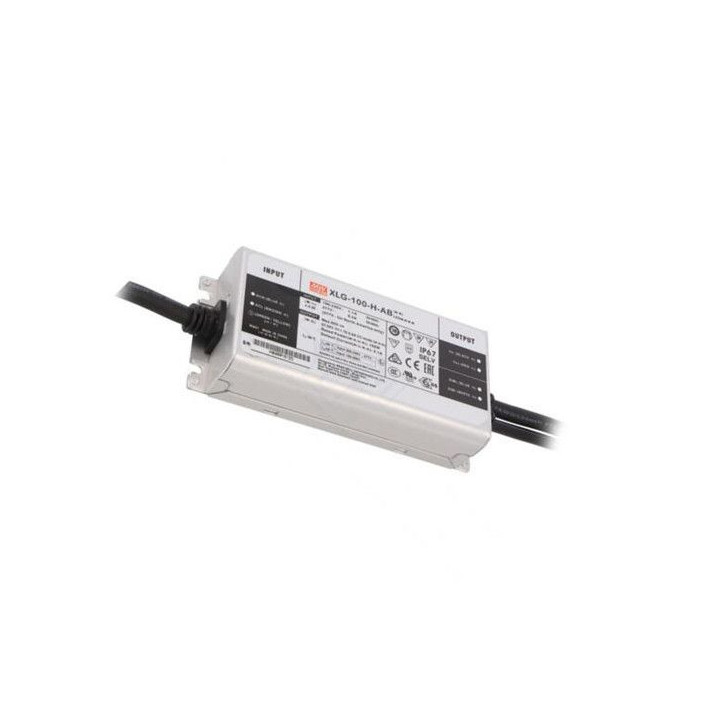

Mean Well XLG-100-24-A 24 V 4 A 96 W LED power supply
Mean Well XLG-100-24-A: a robust 24 V LED power supply with a rated output of 96 W and an output current of 4 A. IP67 protection for indoor and outdoor LED lighting. Supplied with connection cables and open wire ends for installation.
Mean Well XLG-100-24-A – 24 V LED power supply
The Mean Well XLG-100-24-A is a powerful LED driver for 24 V LED lighting. Its robust metal housing with IP67 protection is suitable for demanding indoor and outdoor installations. The unit operates in constant-voltage (CV) mode and delivers up to 96 W of output power. The input and output cables are pre-fitted and have open wire ends.
Technical specifications
| Property | Specification |
|---|---|
| Manufacturer | MEAN WELL |
| Model | XLG-100-24-A |
| Product type | LED power supply / LED driver, constant voltage (CV) |
| Input voltage | 100–305 V AC / 142–431 V DC |
| Input frequency | 47–63 Hz |
| Output voltage | 24 V DC |
| Rated output current | 4 A |
| Rated power | 96 W |
| A-type current adjustment range | 2–4 A, adjustable |
| Efficiency (typ.) | 92% |
| Power factor (typ.) | ≥ 0.95 at 230 V AC |
| IP rating | IP67 |
| Protection functions | Overvoltage, overcurrent, short circuit, overtemperature |
| Classification | Class 2 at 24 V |
| Housing dimensions | 140 × 63 × 32 mm (L × W × H) |
| Case temperature | Tcase −40 to +90 °C |
| Weight | Approx. 0.58 kg |
| Connections | Fixed cables with open wire ends |
Note: Electrical connections must only be made by a qualified professional. Check the technical specifications and correct polarity before commissioning.
Package contents
- 1× Mean Well XLG-100-24-A LED power supply
-
ReferenceXLG-100-24-A
-
In stock5 Items
-
ConditionNew
-
Input voltage100–305 V AC / 142–431 V DC
-
Output voltage24V DC
-
Maximum power in watts96 W
-
Dimensions140 × 63 × 32 mm (L × W × H)
-
Special featuresFixed cables with open wire ends, no mains plug
-
Operating temperatureCase temperature Tcase: −40 to +90 °C; see datasheet derating curves
