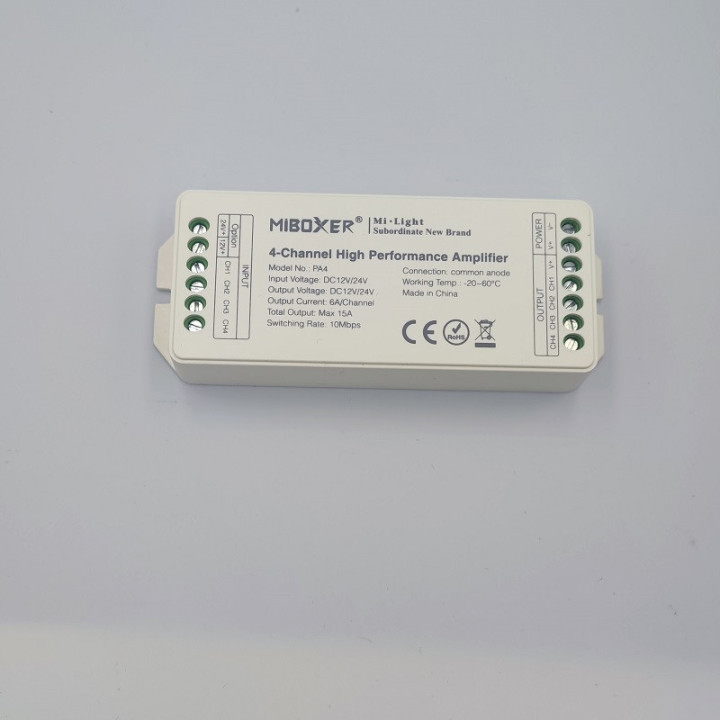

MiBoxer PA4 4-channel PWM signal amplifier images
MiBoxer PA4 4-channel PWM signal amplifier
PWM signal amplifier for analogue 12 or 24 V LED strips with up to four channels, such as RGBW. Maximum 6 A per channel and 15 A total. A suitable controller and power supply are required separately.
MiBoxer PA4 PWM signal amplifier
The PA4 repeats a compatible controller’s PWM control signal and powers additional LED strips using a suitable power supply. It does not automatically increase the brightness of a correctly powered strip and does not replace a controller.
- Model: PA4
- Analogue LED strips with up to four channels, such as RGBW
- Operating voltage: 12 or 24 V DC
- Output current: maximum 6 A per channel, 15 A total
- Dimensions: 119 × 47 × 23 mm
- Housing material: ABS
Match the power supply and strip voltage. Connect according to the manufacturer’s wiring diagram. Do not connect directly to mains voltage. Not suitable for digital SPI/WS2811 LED strips.

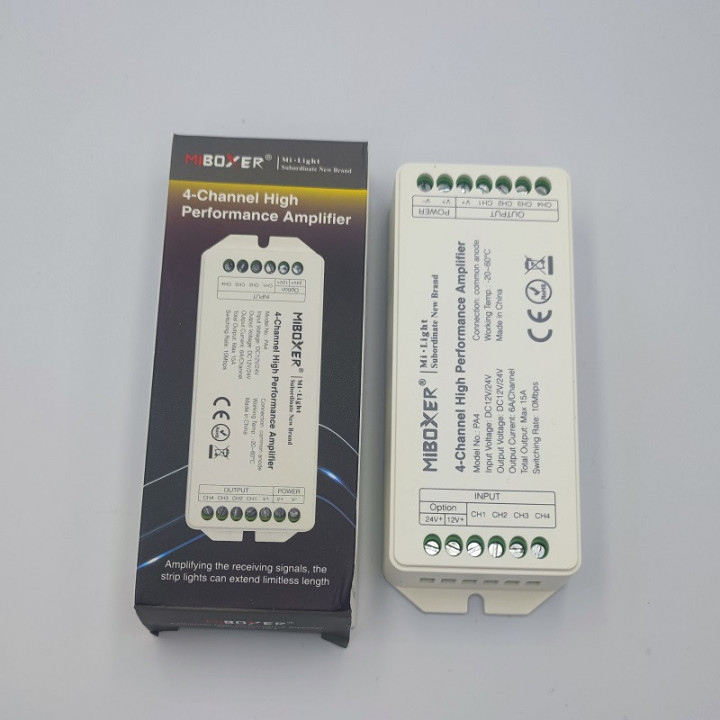

Includes: 1 PA4 amplifier and English instructions. Controller, power supply and LED strips are not included.
-
