24 V 8 A 200 W power supply with cable and plug

24 V 8 A power supply with DC cable and barrel plug 5.5 × 2.1 mm

CHF36.00

No tax

24 V DC desktop power supply with a maximum output current of 8 A, equivalent to a calculated 192 W at 24 V.

For compatible 24 V constant-voltage devices and LED strips. Includes a DC output cable and barrel plug (5.5 × 2.1 mm, outer × inner diameter). IP20; dry indoor use only.

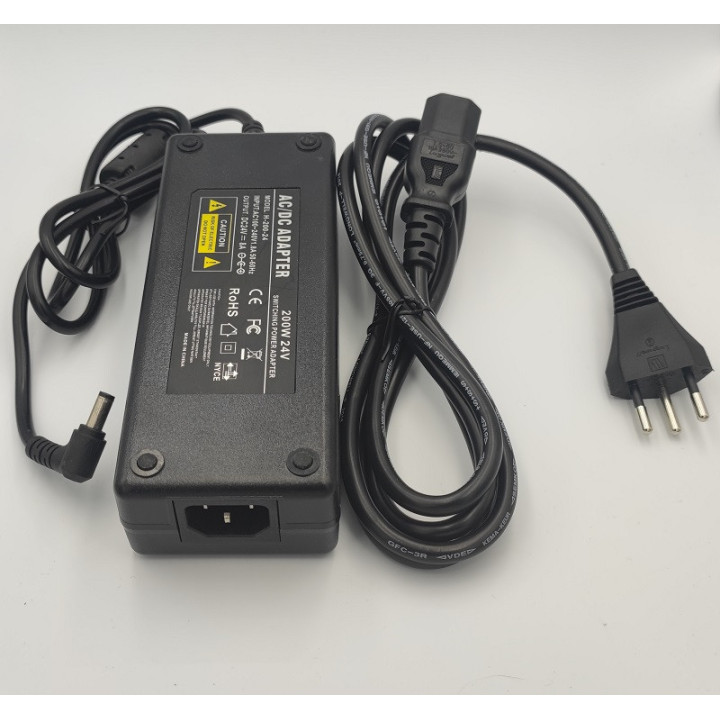

The photographed label describes the unit as 200 W. Observe the 8 A output limit when sizing the load.

Barrel plug polarity: centre positive (+), outer contact negative (−).

Last items in stock

24 V 8 A power supply with DC cable and barrel plug

This desktop power supply powers compatible LED strips and devices requiring 24 V constant voltage. It supplies a maximum output current of 8 A, equivalent to a calculated 192 W at 24 V.

Technical overview

Property	Specification
Output voltage	24 V DC
Maximum output current	8 A
Calculated output power	192 W
Type	Desktop power supply
DC output connection	DC cable with barrel plug
Barrel plug dimensions (outer × inner diameter)	5.5 × 2.1 mm
Barrel plug polarity	Centre contact: positive (+); outer contact: negative (−)
IP rating	IP20
Use	Dry indoor areas

Choosing a suitable power supply

The output voltage must match the connected lighting. The total current draw must not exceed 8 A. Also check the barrel plug outer and inner diameters and the polarity before connection; matching the voltage alone does not guarantee compatibility with every device.

Installation and use

The power supply is not waterproof and is intended for dry indoor areas only. Follow the information on the rating label and the installation instructions for the connected LED strip. Select LED strips and any required controllers separately.

Rating label note: The pictured unit is labelled 200 W. Observe the 8 A output limit when sizing the load, equivalent to a calculated 192 W at 24 V.

Barrel plug on the DC side

The barrel plug on the DC output cable connects to a matching DC socket on the device or controller. Plug dimensions and polarity must match; the correct output voltage alone is not sufficient.
