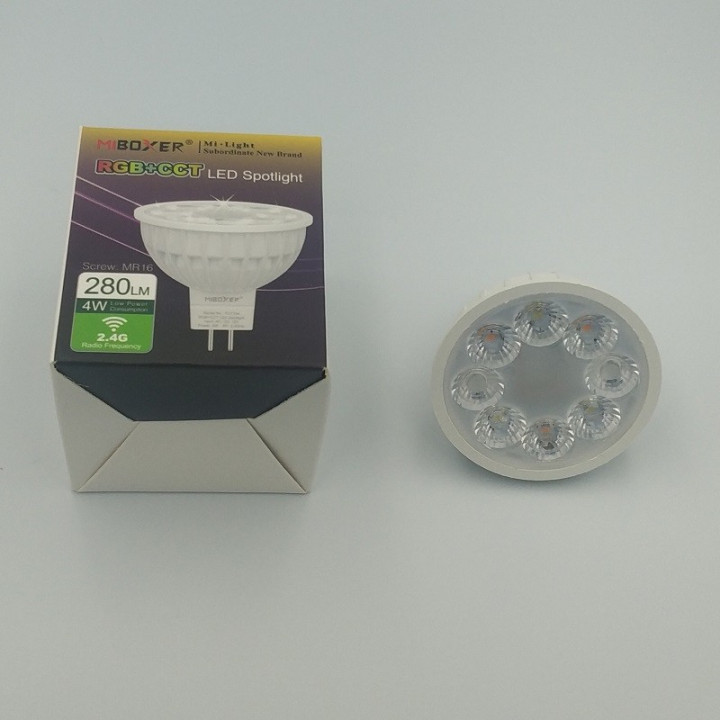

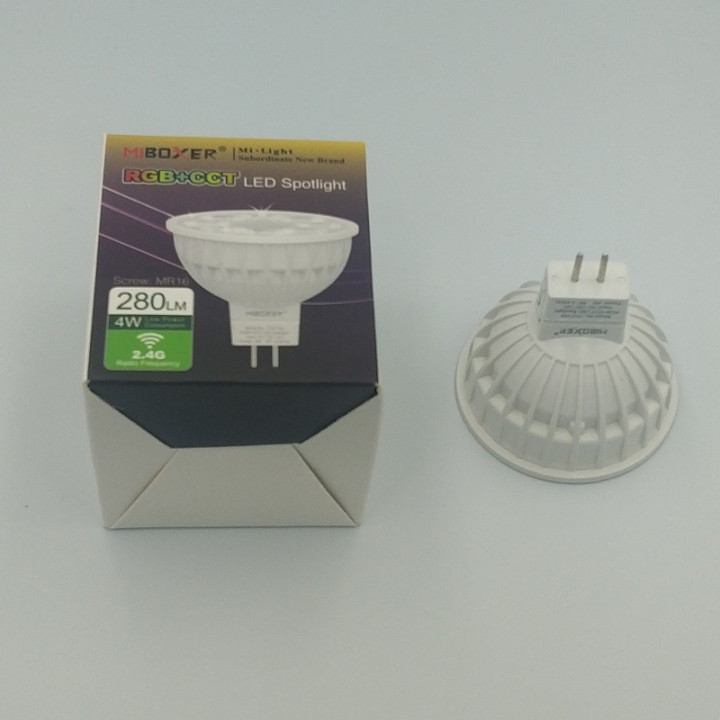

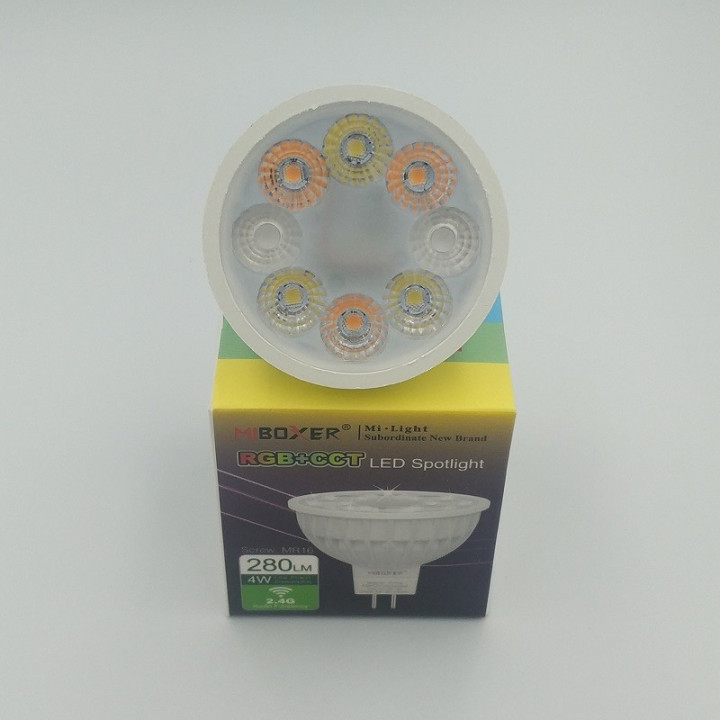

MiBoxer FUT104 LED spotlight GU5.3 4 W RGB+CCT 280 lm

Technical specifications

• Model: FUT104
• Base: GU5.3 (MR16)
• Power: 4 W
• Luminous flux: 280 lm
• Operating voltage: 12 V DC
• Light colours: RGB+CCT (RGB and adjustable white light)
• Colour temperature: 2700–6500 K
• Colour rendering: CRI >80
• Beam angle: 25°
• Dimensions: Ø 50 × 49 mm
• Version: 280 lm
• RF frequency: 2.4 GHz
• RF range: up to 30 m, depending on environmental conditions

Control

Brightness, RGB colour and white light colour temperature are adjusted using a compatible Mi-Light/MiBoxer remote control. Dimming is controlled via RF.

Compatible remote controls

The following models are listed in the manufacturer documentation:

• Handheld remote controls: FUT088, FUT089, FUT092, FUT095, FUT096
• Wall-mounted remote controls: B0, B3/T3, B4/T4, B8

Available functions depend on the remote control model. RGBW remote controls do not provide the full RGB+CCT functionality.

App control

App control requires an additional 2.4 GHz gateway compatible with this model. The bulb does not have built-in Wi-Fi. Remote control and gateway are sold separately.

Installation notes

Use only with a suitable 12 V power supply. Do not connect directly to 230 V. The power supply is not included. When replacing existing halogen bulbs, check that the power supply is suitable for LED operation.
