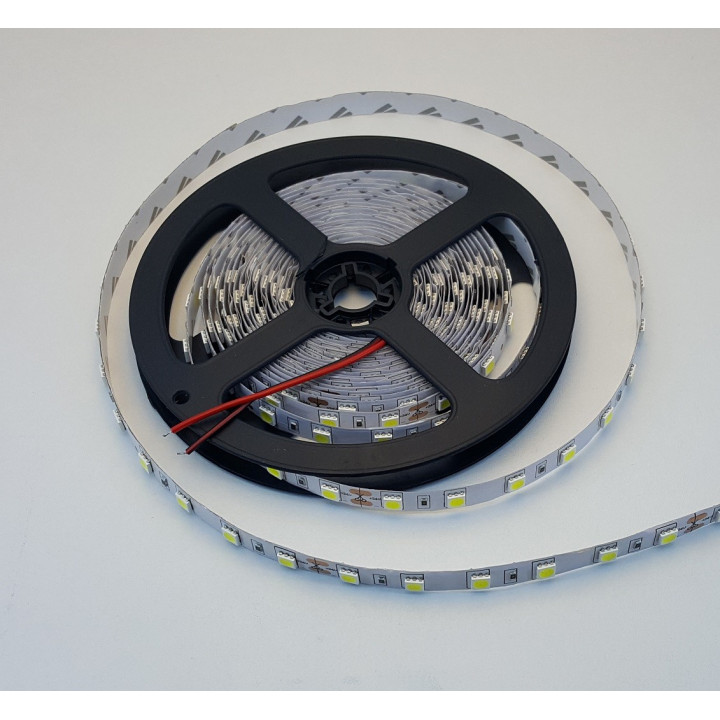

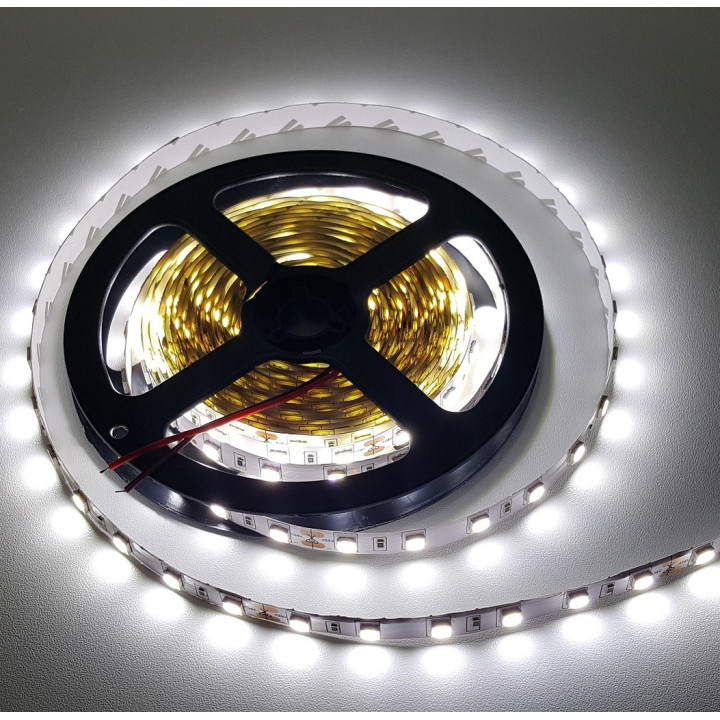

Cool white LED strip 13 W/m 24 V 10 mm 5050

CHF12.00

No tax

Dimmable 24 V LED strip in cool white, approx. 5000 K, with a very high luminous flux per metre. Power consumption is only 13 W per metre and the beam angle is 120°. A 24 V DC power source is required. Operating temperature: -20° to +40°C. Ensure sufficient cooling with aluminium profiles during installation. Supplied as a 5 m roll with soldered cable. Cut points every 100 mm. Dimensions in mm: L x H x W 5000 x 10 x 2.2.

Technical specifications

LED system	Single colour
Light colour	Cool white
Colour temperature	5000 Kelvin
Operating voltage	24 V DC
Measured power consumption over 1 m	13 W
Measured power consumption over 5 m	42 W
LEDs per metre	60
Beam angle	120°
Dimmable	Yes
Colour rendering index (CRI/Ra)	> 80 CRI
Width	10 mm
Length	5000 mm
Height	2.2 mm
Protection rating	IP20
Weight	0.1120 kg
Rated service life	25000 h
Energy efficiency class	A

A compatible 24 V DC power supply is required.

Measurement note: Power consumption was measured separately on 1 m and 5 m lengths of LED strip. Each value refers to the complete length measured. A measurement for 1 m therefore cannot be multiplied directly to obtain the value for 5 m.
