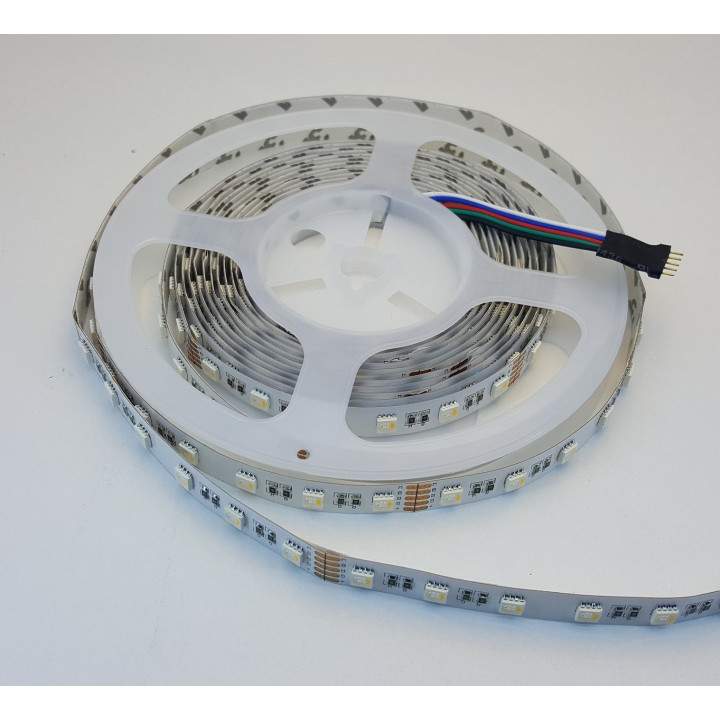

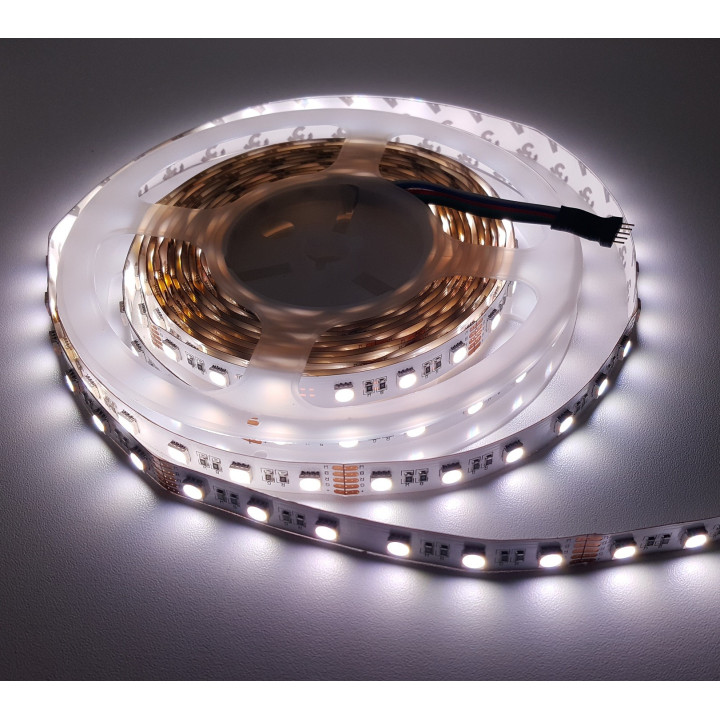

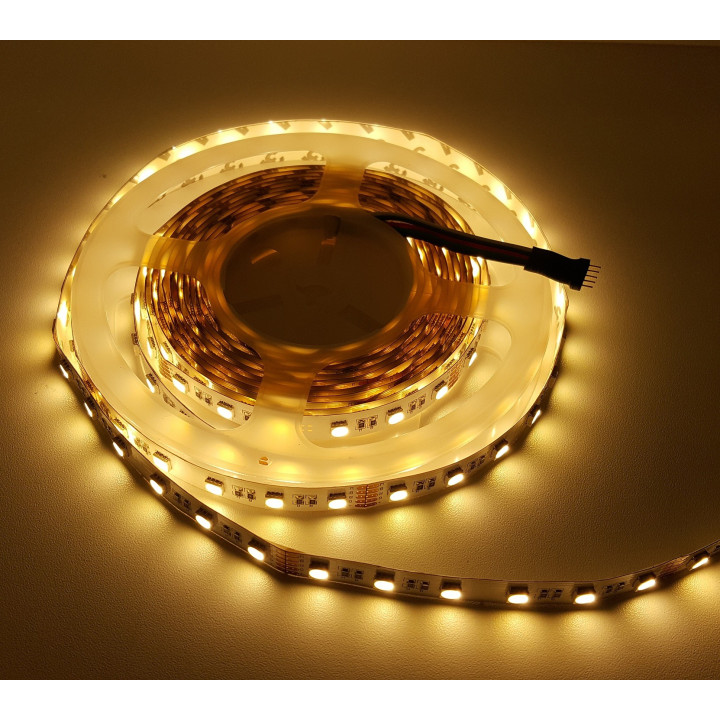

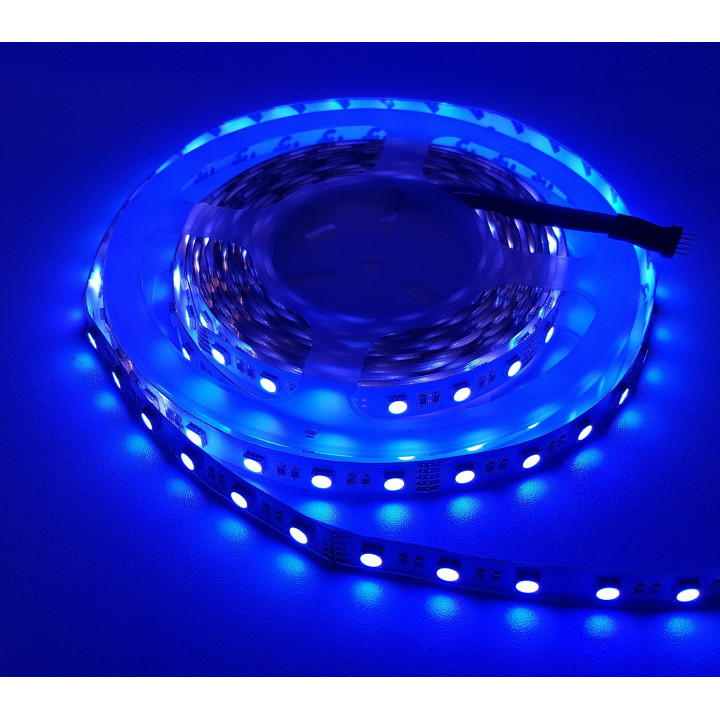

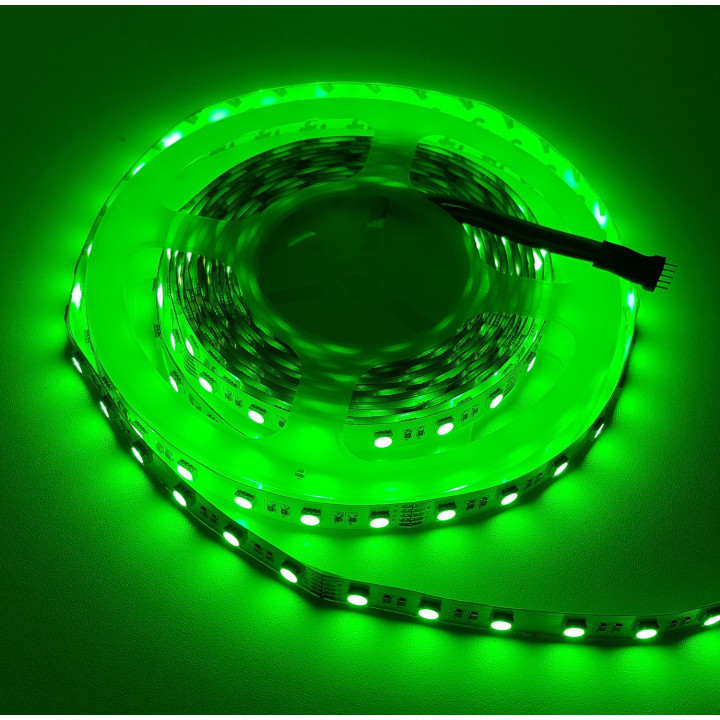

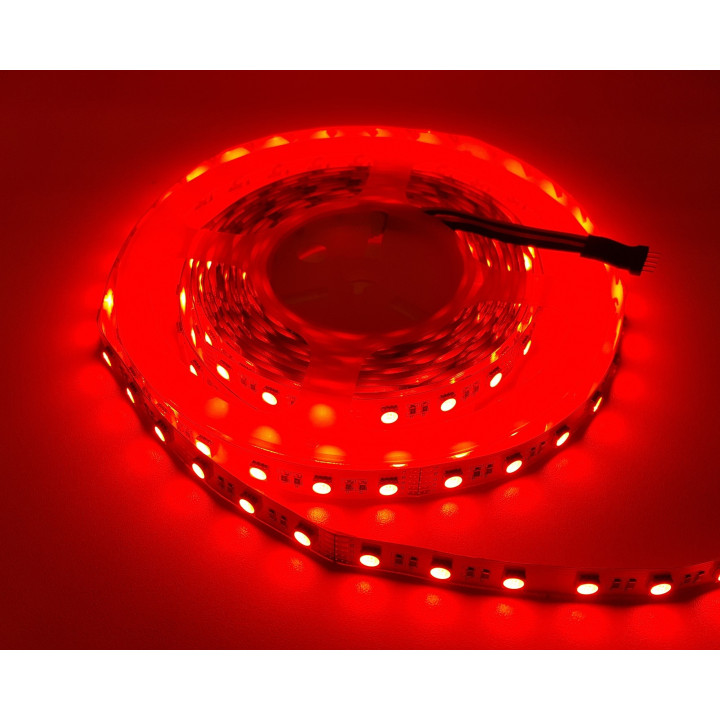

RGBWW 4-in-1 24 V 12 mm white 5 m non-waterproof

RGBWW 4-in-1 24 V 12 mm white 5 m non-waterproof

CHF67.00

No tax

RGBWW LED strip for 24 V DC. The colour channels are controlled by a compatible multi-channel constant-voltage controller. Supplied as a continuous 5 m strip. Check the specifications for strip width, LED density, protection rating and measured power consumption.

Last items in stock

Technical specifications

LED system	RGBWW 4 in 1
Colour temperature	Various
Operating voltage	24 V DC
Measured power consumption over 5 m	58 W
Measured power consumption over 1 m – white	4.2 W
Measured power consumption over 1 m – red	3.1 W
Measured power consumption over 1 m – green	3.5 W
Measured power consumption over 1 m – blue	3.7 W
Measured power consumption over 1 m	14.5 W
LEDs per metre	60
Beam angle	120°
Dimmable	Yes
Colour rendering index (CRI/Ra)	> 80 CRI
Width	12 mm
Length	5000 mm
Height	2.2 mm
Protection rating	IP20
Weight	0.1120 kg
Rated service life	25000 h
Energy efficiency class	A

A compatible 24 V DC power supply is required.

Measurement note: Power consumption was measured separately on 1 m and 5 m lengths of LED strip. Each value refers to the complete length measured. A measurement for 1 m therefore cannot be multiplied directly to obtain the value for 5 m.
