Solderless L-shaped corner connector set for RGB+CCT LED strips, 12 mm, 6-pin

Solderless L-shaped corner connector set for RGB+CCT LED strips

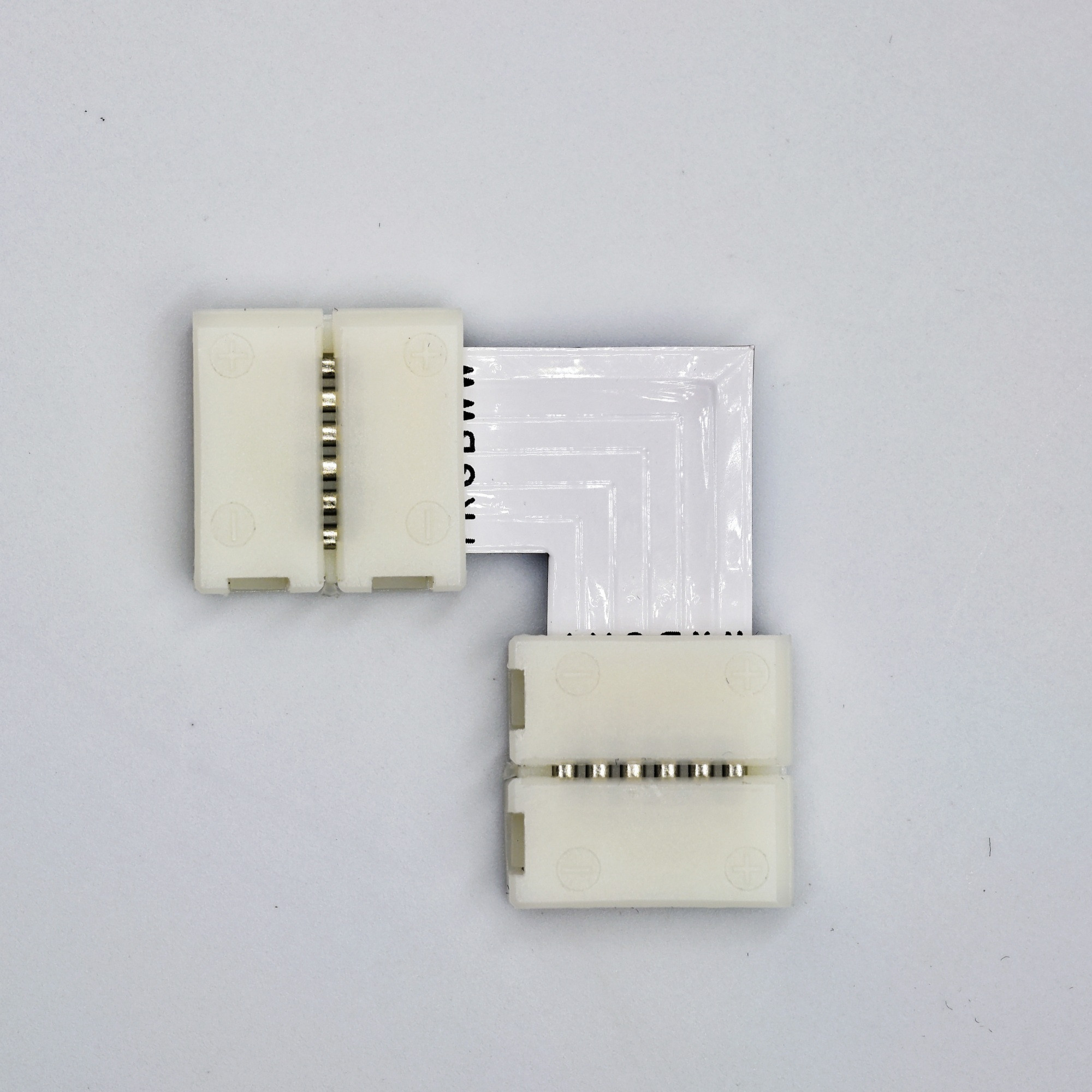

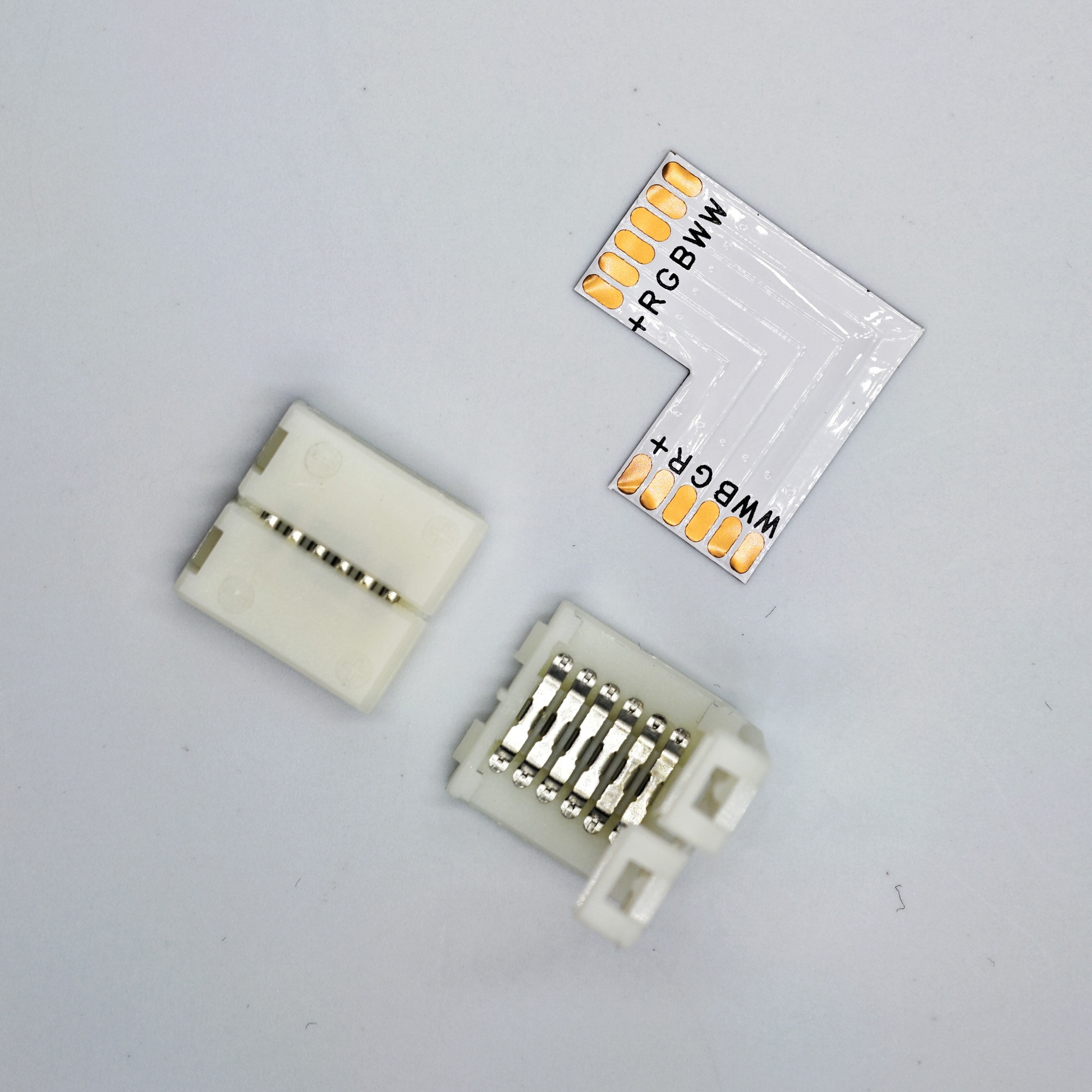

The L-shaped PCB connects compatible LED strips around a 90° corner without sharply bending the strip. The included six-pin clip connectors make the connection without soldering.

General recommendation for connecting LED strips

For permanent installations we generally recommend professionally soldering the connection wires directly to the LED strip. This is a general alternative to clip connectors, not an instruction to solder this set. If you prefer not to solder, use this solderless connector set with the included clips.

Solder-free installation

• Completely disconnect the power supply before installation.
• Only use compatible uncoated RGB+CCT LED strips with a 12 mm PCB width and six contact pads. Contact spacing and component clearance must also match.
• Match the strip and PCB pin assignments: positive, R, G, B, warm white and cool white must be correctly connected. The pin order may differ between strips.

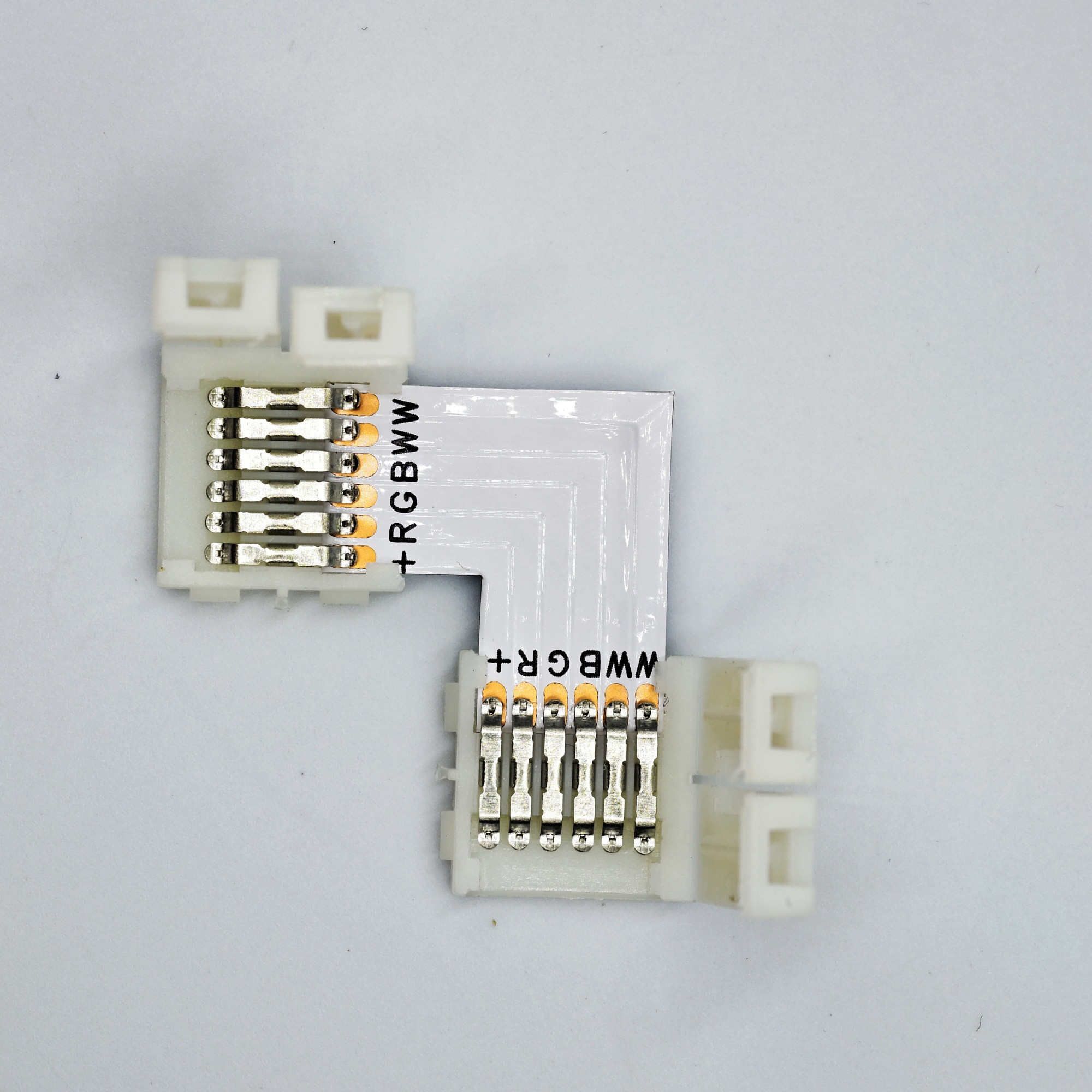

• Open the clips, insert the clean contact pads straight and fully, then securely close the lids. Check secure seating and possible short circuits.
• Secure the connection without tension. For dry indoor use only; the set is not waterproof and does not provide an IP65/IP67 seal.
• Not for mains voltage or as a data connector for addressable LED strips.

Maximum current

Maximum total current: 2 A. This is not a per-channel or per-branch rating. The total current flowing through the connector set must not exceed 2 A. Higher currents require a different connection and power-feed solution rated for that load.
