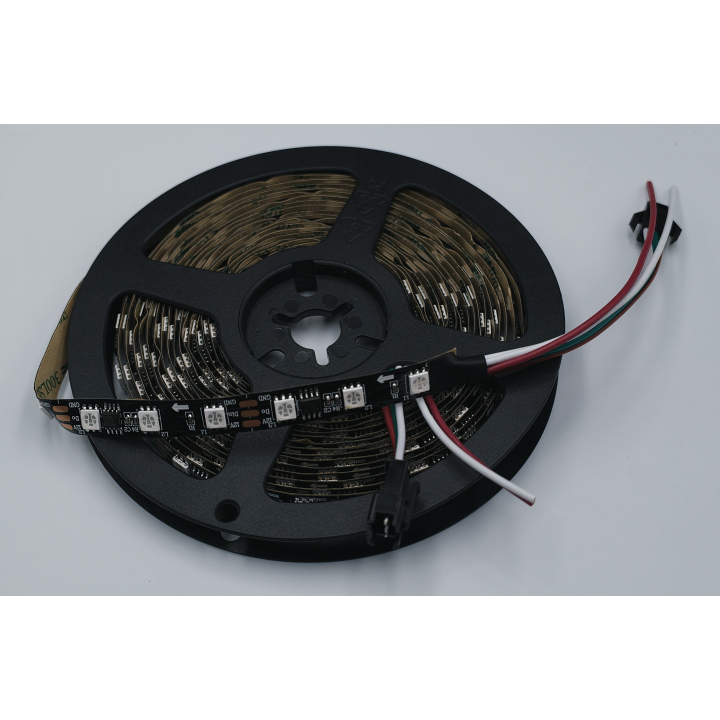

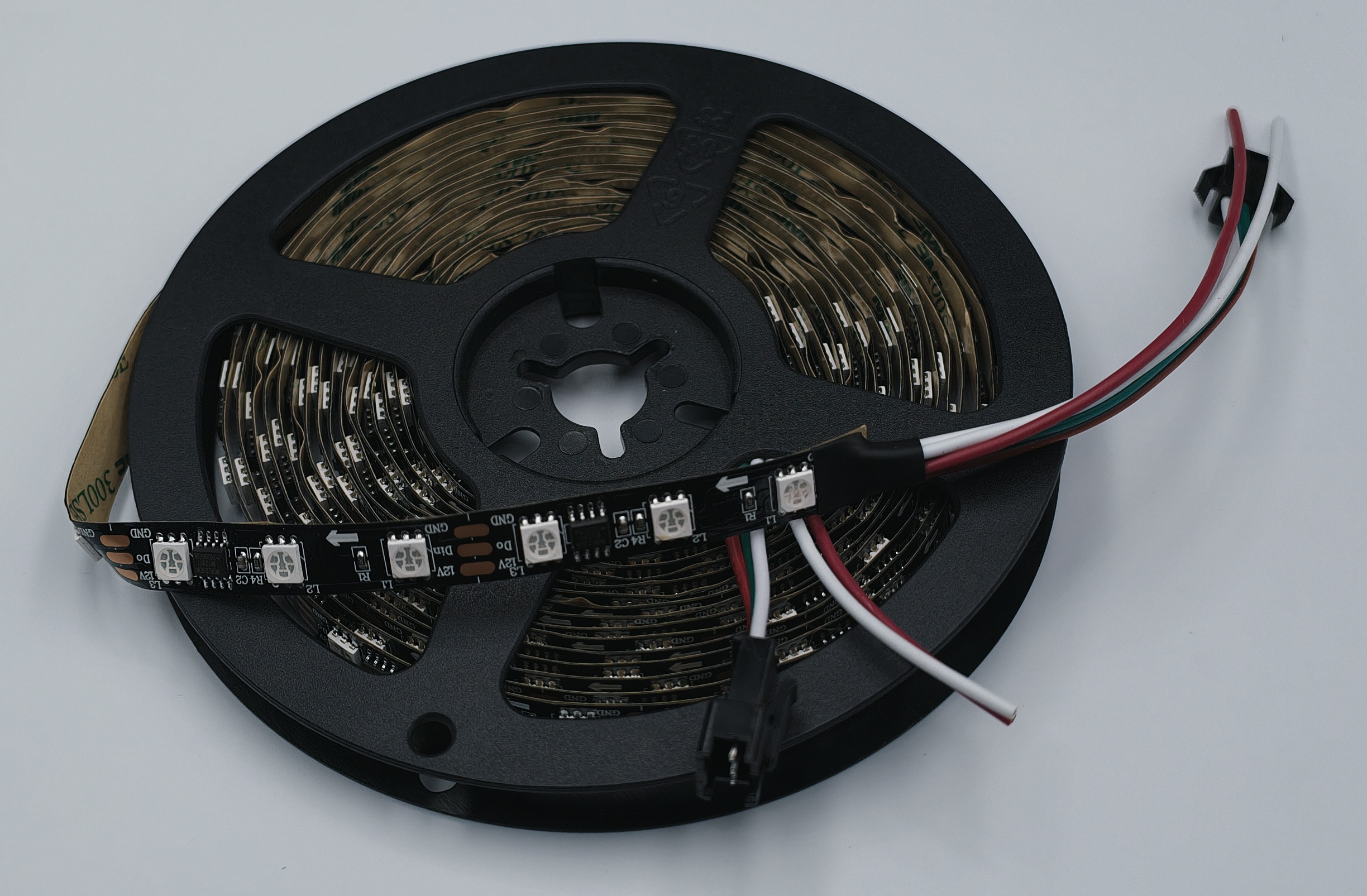

WS2811 RGB LED strip with black PCB on reel

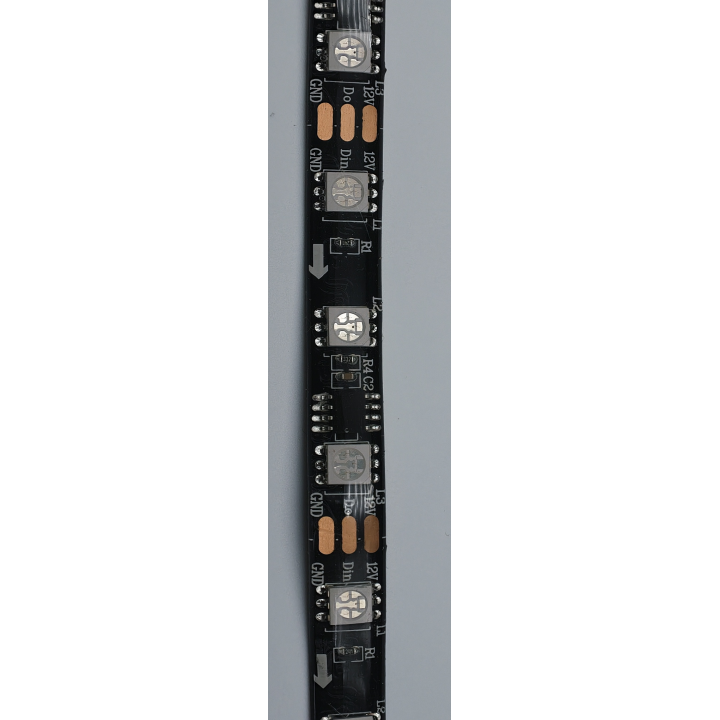

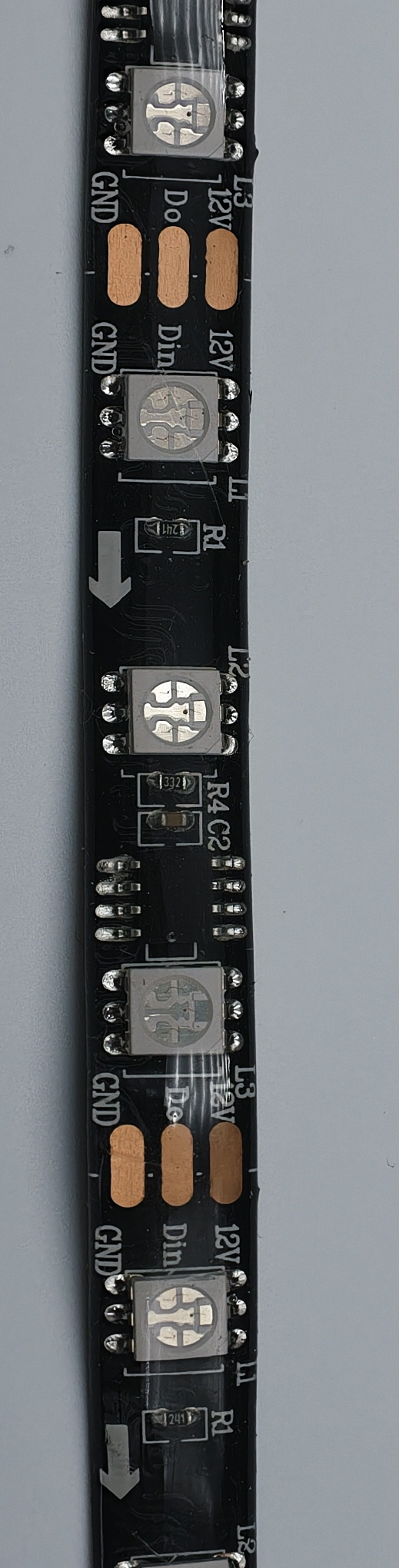

WS2811 RGB LED strip – black PCB and data direction

WS2811 RGB LED pixel strip 12 V 5 m 60 LEDs/m – black PCB IP30

CHF21.00

No tax

WS2811 RGB pixel strip, 12 V DC, 5 m, 60 LEDs/m, black PCB, IP30. Controller and power supply not included.

WS2811 RGB LED pixel strip

5 m digitally controlled RGB LED strip with 300 LEDs. Individual segments can display different colours.

Supply voltage: 12 V DC
Length: 5 m
LED density: 60 LEDs/m, 300 LEDs in total
Pixel control: WS2811, LED type 5050 RGB
PCB: black
Strip protection rating: IP30
Included: 1 reel of LED strip, without controller or power supply

A compatible controller, such as the SP501E, is required separately. The strip protection rating does not apply to open connections, the controller or the power supply.

A 12 V power supply is not included. Check actual power consumption before connection and size the power supply and wiring accordingly. Additional power injection may be needed for 5 m at high brightness. Operate on 12 V DC only; do not connect directly to 230 V mains.

SP501E · Set with SP501E
