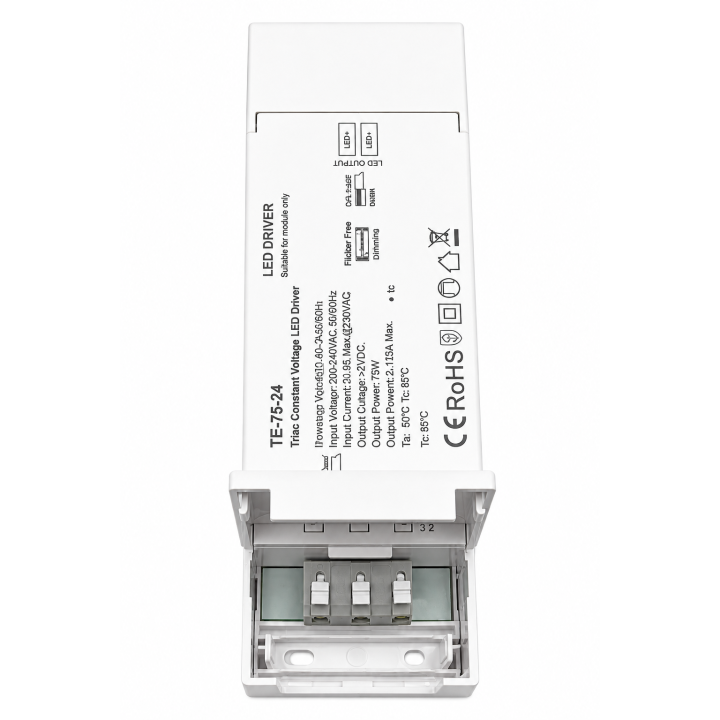

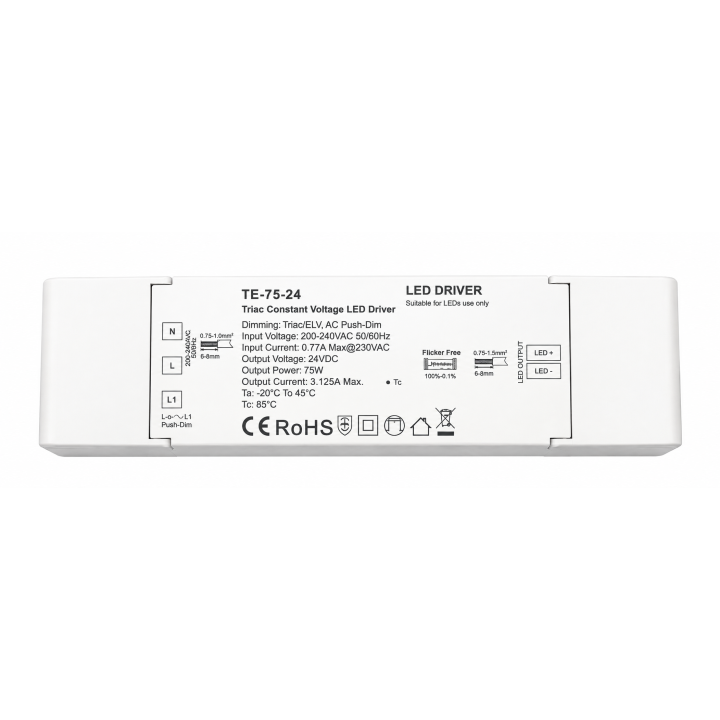

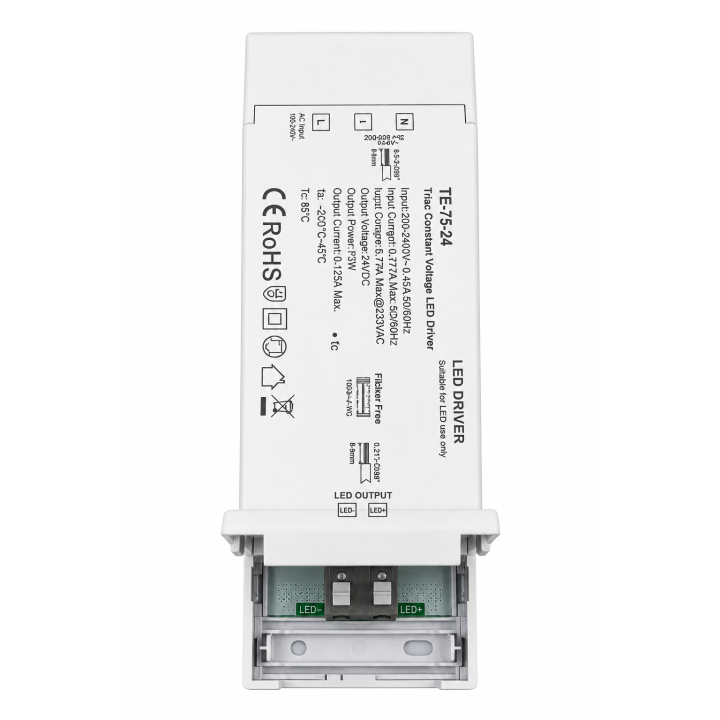

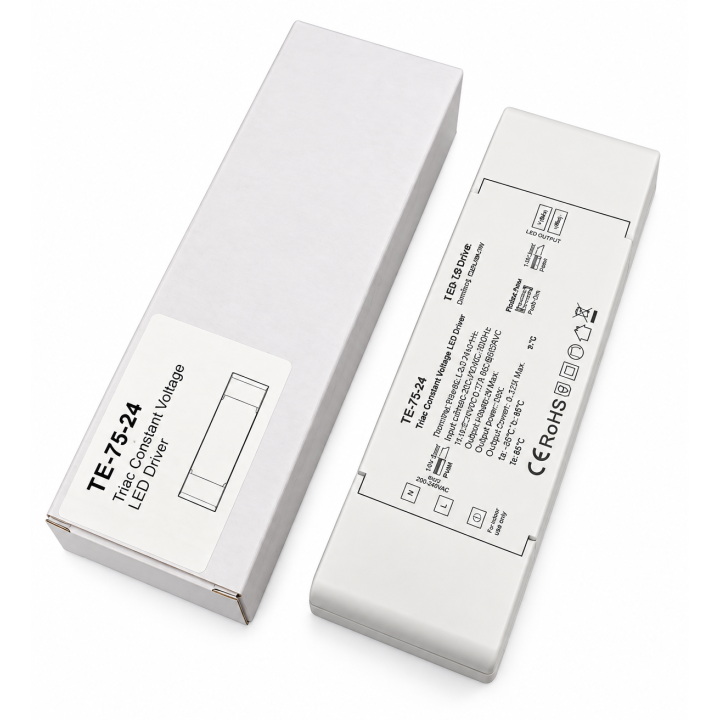

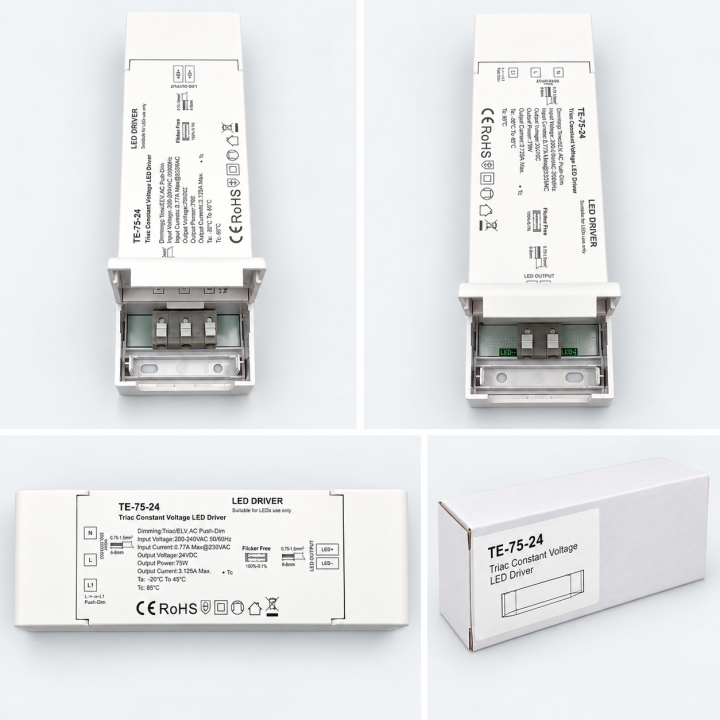

Triac dimmable LED driver TE-75-24 24 V 75 W
Price:
CHF39.00
No tax
Dimmable 24 V LED driver TE-75-24 for single-colour LED strips. 75 W output with Triac/ELV and AC Push-Dim.
Triac-dimmable LED driver TE-75-24 – 24 V / 75 W
Professional constant-voltage LED driver for 24 V LED strips and LED modules. The driver supports Triac/ELV dimming and AC Push-Dim, with continuous dimming from 0 to 100%. Suitable for single-colour LED strips and indoor LED lighting.
Technical specifications
| Property | Specification |
|---|---|
| Model | TE-75-24 |
| Product type | Triac-dimmable constant-voltage LED driver |
| Output voltage | 24 V DC |
| Output power | 75 W max. |
| Output current | 3.125 A max. |
| Input voltage | 200–240 V AC, 50/60 Hz |
| Input current | 0.77 A max. at 230 V AC |
| Efficiency | 87% at 230 V AC |
| Dimming | Triac/ELV, AC Push-Dim |
| Dimming range | 0–100% |
| PWM frequency | 2000 Hz |
| Protection functions | Overtemperature, overload, short circuit |
| IP rating | IP20, indoor use |
| Dimensions | 179 × 56 × 30 mm |
| Ambient temperature | −20 to +45 °C |
| Maximum case temperature tc | 85 °C |
| Certifications | CE, RoHS |
Note: For single-colour LED strips and LED modules. Flicker-free PWM operation. Connection and installation must only be carried out by a qualified electrician.
-
ReferenceBLED-211
-
In stock8 Items
