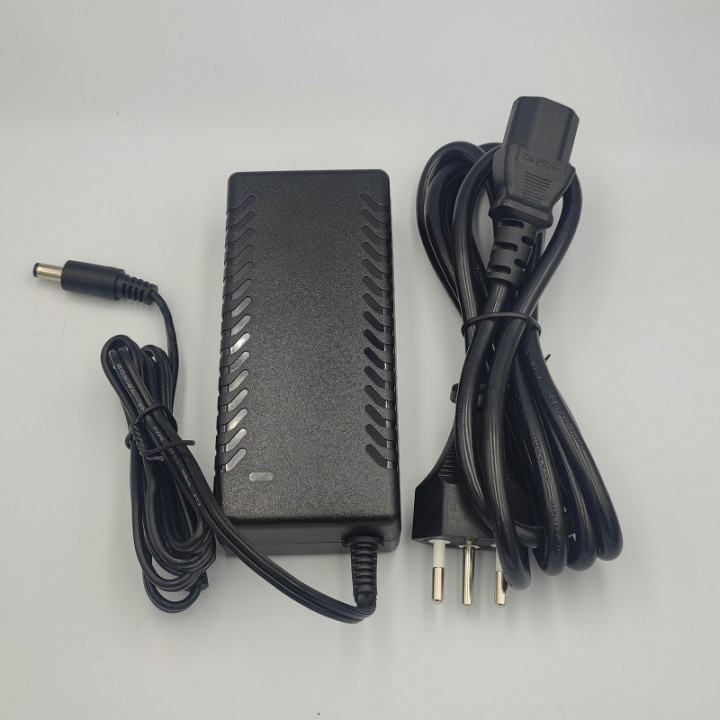

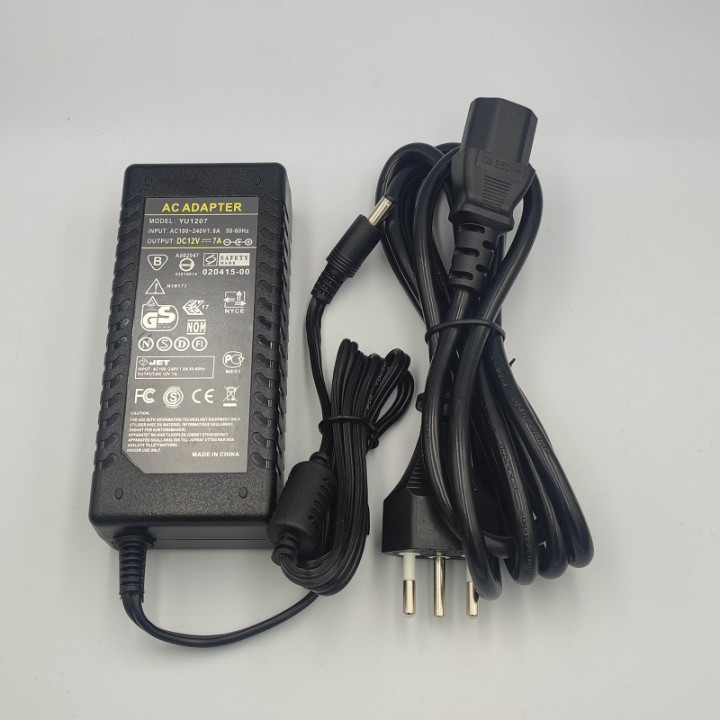

12 V 7 A 84 W power supply with cable and plug

12 V 7 A 84 W power supply with DC cable and barrel plug 5.5 × 2.1 mm

CHF27.00

No tax

Constant-voltage power supply with a 12 V DC output, maximum 7 A output current and 84 W rated power. Supplied with a DC output cable and barrel plug (5.5 × 2.1 mm, outer × inner diameter); IP20 for dry indoor use. Check the barrel plug outer and inner diameters, polarity and the total connected load.

Barrel plug polarity: centre positive (+), outer contact negative (−).

12 V 7 A 84 W power supply with DC cable and barrel plug

This desktop power supply powers compatible LED strips and devices requiring 12 V constant voltage. It supplies a maximum output current of 7 A and 84 W output power.

Technical overview

Property	Specification
Output voltage	12 V DC
Maximum output current	7 A
Maximum output power	84 W
Type	Desktop power supply
DC output connection	DC cable with barrel plug
Barrel plug dimensions (outer × inner diameter)	5.5 × 2.1 mm
Barrel plug polarity	Centre contact: positive (+); outer contact: negative (−)
IP rating	IP20
Use	Dry indoor areas

Choosing a suitable power supply

The output voltage must match the connected lighting. The total current draw must not exceed 7 A. Also check the barrel plug outer and inner diameters and the polarity before connection; matching the voltage alone does not guarantee compatibility with every device.

Installation and use

The power supply is not waterproof and is intended for dry indoor areas only. Follow the information on the rating label and the installation instructions for the connected LED strip. Select LED strips and any required controllers separately.

Barrel plug on the DC side

The barrel plug on the DC output cable connects to a matching DC socket on the device or controller. Plug dimensions and polarity must match; the correct output voltage alone is not sufficient.
