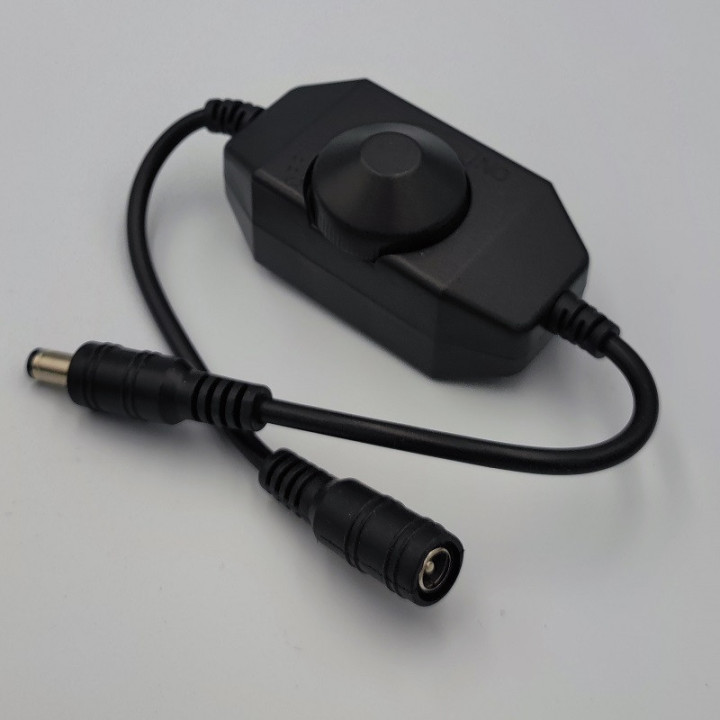

12 V/24 V dimmer with DC barrel connector

CHF6.20

No tax

In-line PWM dimmer for single-colour LED lighting operating at 12 or 24 V DC. Maximum load current 2 A, corresponding to 24 W at 12 V or 48 W at 24 V. Rotary control for continuous brightness adjustment and switching on/off.

Color

JD-03-14-Y75 PWM dimmer

This in-line dimmer connects between a suitable DC power supply and single-colour LED lighting. The rotary knob adjusts brightness and switches the lighting on or off.

Technical specifications

Operating voltage: 12 or 24 V DC
Maximum load current: 2 A
Maximum load: 24 W at 12 V, 48 W at 24 V
Output: 1 channel, PWM
Static power consumption: below 1 W
Connection: 5.5 × 2.1 mm barrel connector
Dimensions: 66 × 33 × 32 mm
Weight: 40 g
Temperature range: −20 to +40 °C
Housing: plastic

Connection and compatibility

Voltage, connectors and polarity must match the power supply and LED lighting. The connected load must not exceed 2 A. Multi-channel colour control requires an appropriate controller.
